Corking Machine

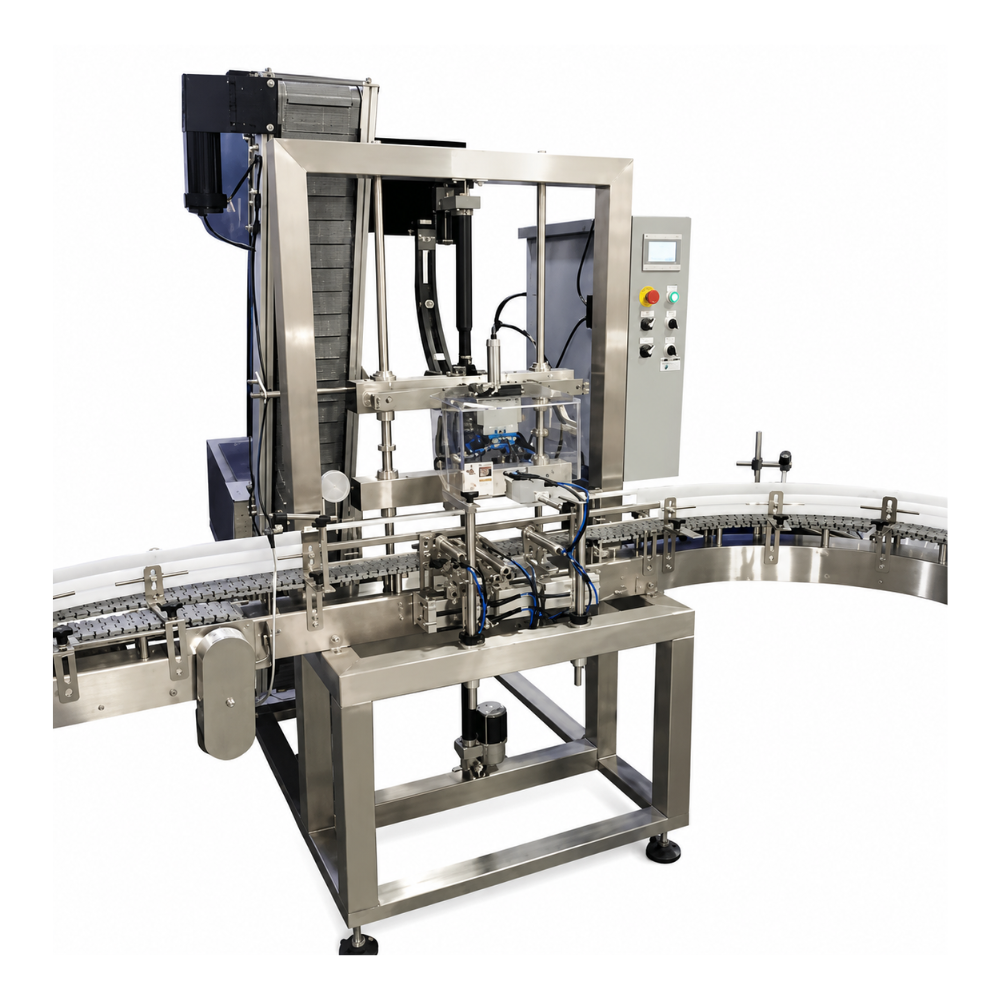

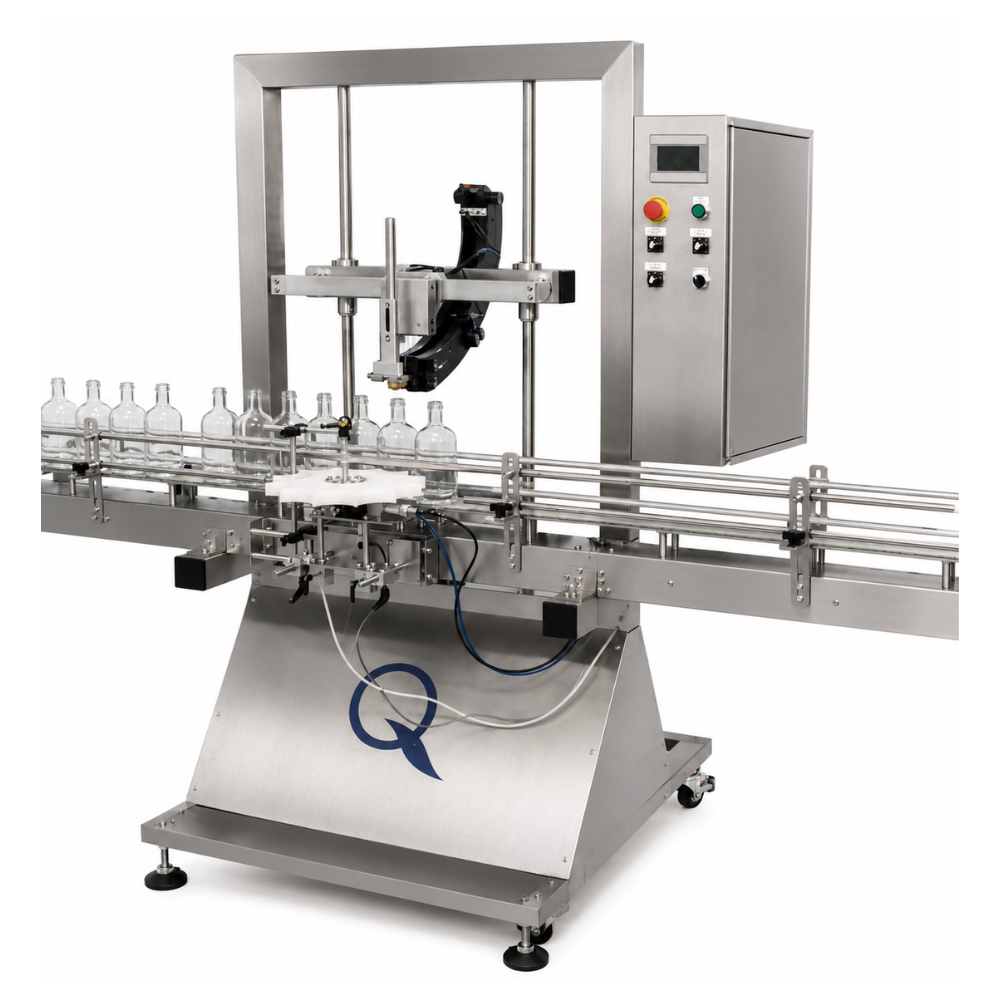

A Corking Machine is used to insert corks into wine bottles to provide a secure closure during storage and distribution. It supports consistent sealing and helps protect wine quality when used with compatible bottles and corks. TRADE SBE offers manual, semi-automatic and automatic corking machine options for different production requirements.
Product Applications
Corking machines are used in wineries, wine bottling plants and beverage packaging facilities. They are suitable for closing red wine, white wine and rosé bottles with compatible natural or synthetic corks. The machine can operate as a standalone unit or integrate into a complete wine bottling line.
Key Benefits
Secure Closure: Inserts corks firmly into compatible bottles.
Consistent Operation: Supports uniform cork insertion.
Flexible Automation: Manual, semi-automatic and automatic options.
Bottle Compatibility: Configurations for different bottle sizes.
Production Efficiency: Helps streamline bottling operations.
Customizable Design: Options available according to production needs.
Operation
Check that the machine, bottles and corks are clean and compatible.
Place the bottle correctly in the holding position.
Load the cork into the feeding or insertion mechanism.
Activate the machine to insert the cork to the specified depth.
Inspect the closure and transfer the bottle for labeling and packing.
|
Specification |
Details |
Machine Type |
Wine Bottle Corking Machine |
|---|---|
|
Application |
Wine, Liquor, Fruit Wine & Beverage Bottles |
|
Bottle Type |
Glass Bottles |
|
Cork Type |
Natural Cork / Synthetic Cork |
|
Cork Insertion |
Pneumatic / Mechanical |
|
Capacity |
600–3,000 Bottles/Hour |
|
Bottle Size |
250 ml–1.5 L |
|
Cork Diameter |
Approx. 18–24 mm |
|
Bottle Positioning |
Automatic / Pneumatic |
|
Control System |
PLC + HMI (Automatic Model) |
|
Frame Material |
Stainless Steel |
|
Conveyor |
Stainless-Steel Conveyor |
|
Air Pressure |
6–8 Bar |
|
Operation |
Semi-Automatic / Automatic |
|
Electrical Supply |
220/380–415 V, 50 Hz |
|
Safety System |
Emergency Stop & Safety Guards |
|
Corking Adjustment |
Adjustable according to bottle/cork size |
|
Construction |
Heavy-Duty Industrial |
|
Customization |
Available |
|
Origin |
India |
|
Maintenance |
Low maintenance |
FAQ
1. What is a corking machine used for?
A corking machine inserts corks into wine bottles to provide a secure closure.
2. Which types of corks can the machine handle?
Depending on the model, it may handle natural corks, agglomerated corks or compatible synthetic corks.
3. Is an automatic corking machine available?
Yes, manual, semi-automatic and automatic models may be available according to production requirements.
4. Can the machine handle different bottle sizes?
Yes, compatible bottle sizes can be accommodated depending on the machine design and changeover options.
5. Can the corking machine be integrated into a bottling line?
Yes, it can be integrated with suitable filling, labeling and conveyor systems.
