Name: Inclined Belt Conveyor
SKU: 34140
Price: 75.00 USD
Availability: InStock

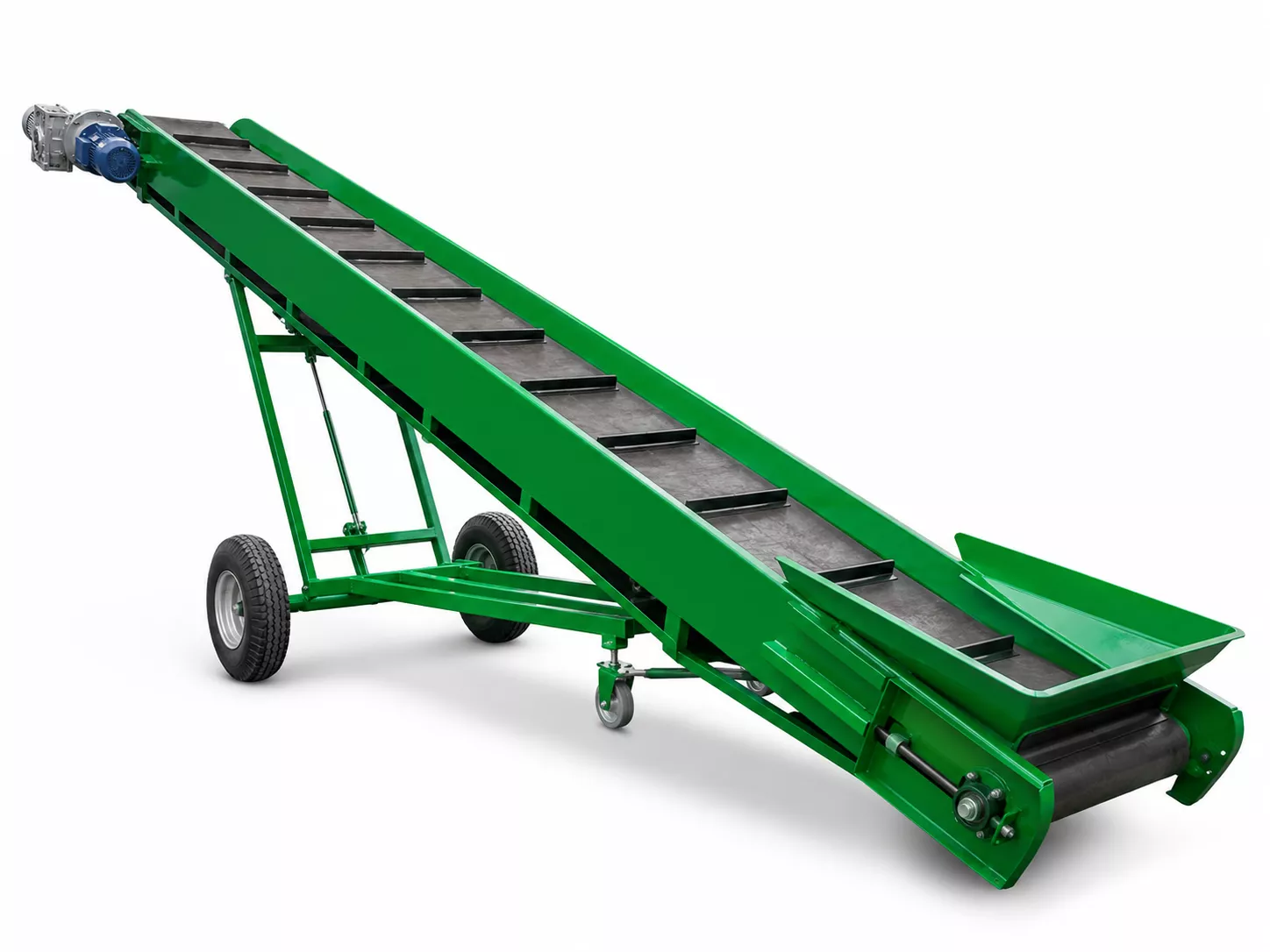

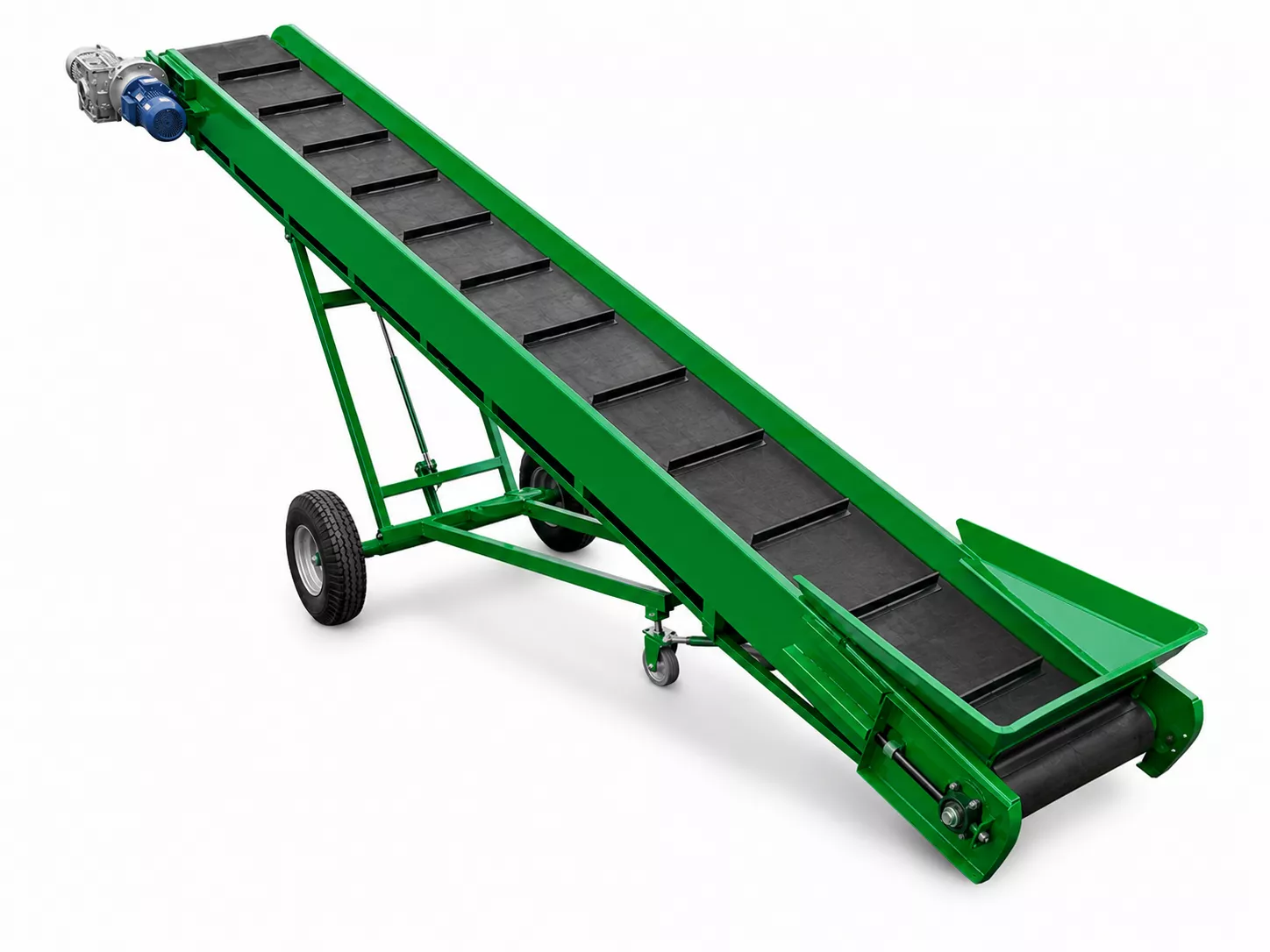

Inclined Belt Conveyor

The Inclined Belt Conveyor is designed for efficient lifting and transporting agricultural, industrial, and packaged materials between different height levels. Its inclined conveyor belt moves materials smoothly upward or downward, making it ideal for continuous material handling and reducing manual lifting requirements. With efficient material transfer, adjustable conveying speed, inclined operation, durable belt construction, stable movement, easy loading and unloading, reliable performance, and low maintenance, it is suitable for farms, warehouses, grain-processing units, food-processing facilities, packaging lines, and industrial operations.

Specification	Details
Machine Type	Heavy-duty centrifugal industrial pump designed for continuous liquid transfer and circulation in demanding industrial applications.
Conveyor Length	Customizable overall conveyor length to suit the required conveying distance and installation layout.
Conveyor Width	Available in different belt widths according to material size, required capacity, and application requirements.
Conveyor Capacity	Designed for efficient continuous movement of bulk materials, bags, boxes, agricultural products, and industrial goods.
Belt Material	Durable rubber conveyor belt selected for good flexibility, grip, abrasion resistance, and long service life.
Belt Surface	Textured belt surface with raised cleats/flights to improve material traction during inclined conveying.
Cleat Height	Cleat height can be configured according to conveyor inclination and the type of material being transported.
Conveyor Inclination	Adjustable inclined configuration allows efficient lifting and transfer of materials to elevated discharge points.
Drive System	Motor-driven conveyor system with a geared drive arrangement for reliable belt movement and controlled operation.
Drive Motor	Electric motor available in a suitable power rating based on conveyor length, load, belt speed, and incline.
Gearbox	Heavy-duty geared reduction unit provides suitable torque and controlled rotational speed to the drive pulley.
Belt Speed	Adjustable or fixed conveying speed depending on the selected motor, gearbox, and application requirements.
Drive Pulley	Robust drive pulley transfers motor torque to the conveyor belt while maintaining reliable belt movement.
Tail Pulley	Heavy-duty tail pulley supports the return section and helps maintain smooth belt circulation.
Belt Tracking	Belt alignment arrangement helps keep the belt centered during continuous operation and reduces uneven wear.
Belt Tensioning	Adjustable belt tensioning system maintains appropriate belt tension for stable conveying performance.
Conveyor Frame	Fabricated steel frame provides structural rigidity and supports the belt, drive system, and transported load.
Support Structure	Reinforced support frame with bracing provides stability during operation, particularly for inclined conveying applications.
Height Adjustment	Suitable operating temperature range depends on the pump materials, mechanical seal, and properties of the pumped medium.
Feed Hopper	Integrated feed hopper provides a controlled loading point and helps guide material smoothly onto the conveyor belt.
Discharge Chute	Discharge section is designed to direct conveyed material accurately into a receiving machine, vehicle, bin, or processing line.
Side Guards	Raised side walls help prevent material from falling off the belt during inclined transportation.
Country of Origin	INDIA
