PLC Control Panel System | Automation & Control Solution

PLC Control Panel

The PLC Control Panel System is designed for efficient automation, monitoring, and control of industrial machines and processing equipment through a programmable logic controller (PLC). Its centralized control system helps manage machine operations, sequences, sensors, and connected components while supporting precise and reliable process control. With PLC-based automation, real-time monitoring, programmable controls, safety interlocks, fault indication, durable panel construction, easy operation, and reliable performance, it is suitable for industrial machinery, laundry plants, manufacturing units, processing facilities, water-treatment systems, agricultural equipment, and commercial automation applications.

Description

Specification	Details
Machine Type	PLC Control Panel System for centralized electrical control and automation of industrial equipment and processes.

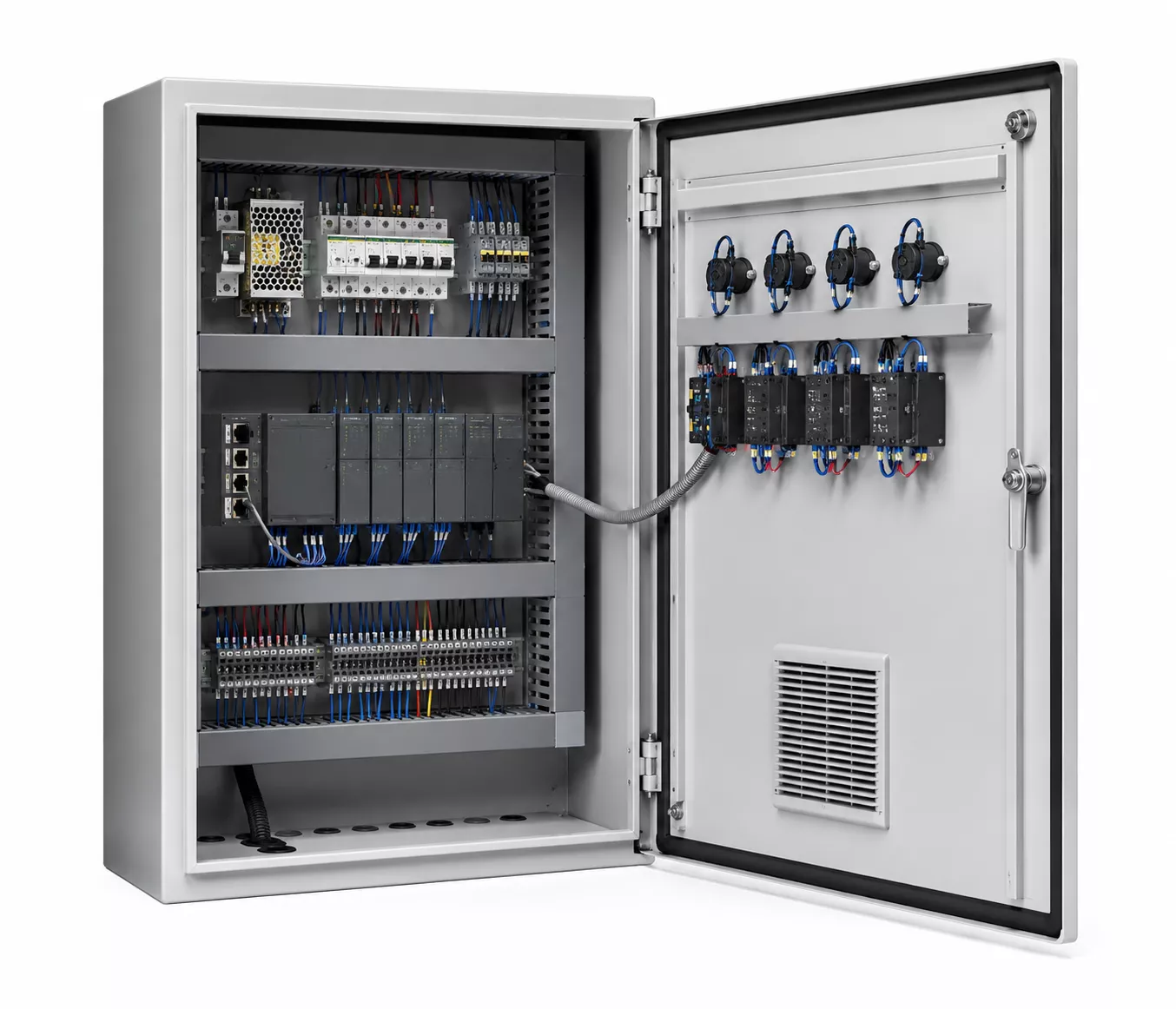

Panel Enclosure	Enclosed electrical control cabinet with a rigid rectangular construction.
Enclosure Material	Metal enclosure with a light-colored protective finish visible in the images.
Panel Configuration	Floor/wall-mounted style cabinet with a hinged front access door.
PLC System	PLC-based control architecture is visible inside the cabinet.
PLC Modules	Multiple modular PLC components are arranged on the internal mounting rail.
Power Supply	Dedicated switching power supply module is visible in the upper section of the cabinet.
Circuit Protection	Multiple miniature circuit breakers/protective devices are installed for electrical circuit protection.
Terminal Blocks	Multiple rows of terminal blocks are provided for organized field wiring and electrical connections.
Control Relays	Multiple relay/control modules are mounted on the inside of the door.
Electrical Wiring	Internal wiring is routed and organized using cable-management channels.
Cable Management	Slotted wiring ducts are visible for structured routing and separation of electrical cables.
Communication Ports	PLC section includes visible network/communication ports for system connectivity.
Door-Mounted Components	Control/relay components are mounted on the inner side of the cabinet door.
Cooling Ventilation	Ventilation grille is provided on the cabinet door to assist with internal heat dissipation.
Door Seal	Perimeter sealing gasket is visible around the inside edge of the door.
Country of Origin	India
