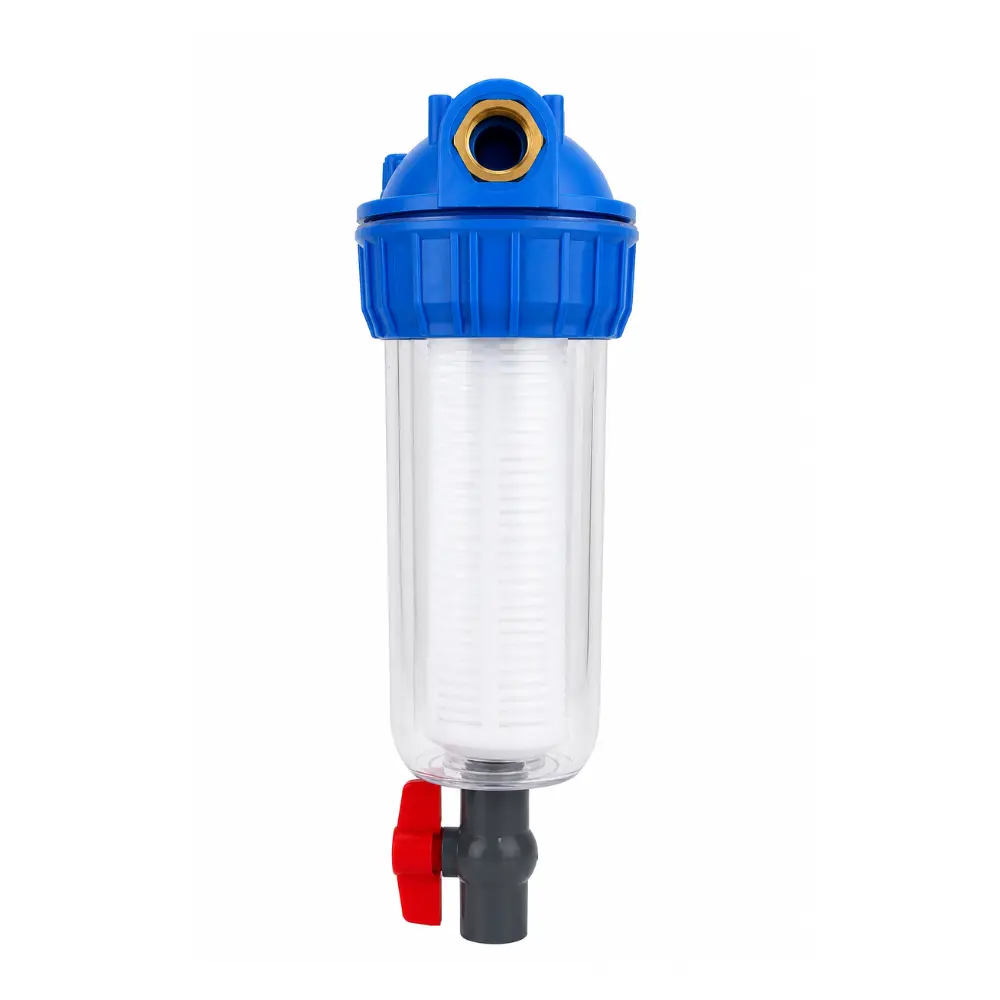

Water Filter System

Poultry Water Filtration System

The Water Filter System is designed to improve the quality of water supplied to poultry drinking equipment by removing suspended particles and unwanted impurities. It provides a cleaner water supply for drinking lines and helps protect downstream components such as nipple drinkers, pressure regulators and water pipes.

Filtration Unit

The filtration unit provides the main treatment point where incoming water passes through a filter element. It helps reduce sediment and particulate matter before the water enters the poultry drinking system.

Water Inlet

The inlet receives water from the main supply, storage tank or pumping system and directs it into the filtration chamber for treatment.

Water Outlet

After filtration, the treated water leaves through the outlet and continues toward the pressure regulator and poultry drinking line. The arrangement supports a cleaner and more controlled water supply.

Filter Element

The internal filter element captures suspended particles and sediment from the incoming water. The filter type and filtration rating can be selected according to water quality and poultry-farm requirements.

Filtration Capacity

The system can be selected according to the required water flow rate and size of the poultry drinking installation. Actual filtration capacity depends on the filter specification and operating conditions.

Working Principle

Incoming water enters the filtration unit through the inlet and passes through the internal filter element. Suspended particles and sediment are retained by the filter while the filtered water continues through the outlet toward the poultry drinking system.

Regular cleaning or replacement of the filter element helps maintain effective filtration and consistent water flow.

Main Applications

• Broiler poultry farms

• Layer farms

• Breeder farms

• Commercial poultry houses

• Automatic nipple drinking systems

• Poultry brooding facilities

• Large-scale poultry farms

• Integrated poultry water-management systems

Key Features

• Effective removal of suspended particles

• Cleaner water supply for poultry

• Helps protect drinking-line components

• Suitable for automatic drinking systems

• Easy connection with water pipelines

• Supports improved water hygiene

• Serviceable filter arrangement

• Suitable for continuous poultry operations

• Compatible with pressure-regulation systems

• Practical solution for commercial poultry farms

Construction Details

The Water Filter System consists of a dedicated filtration housing with water inlet and outlet connections. The internal filter element provides the primary filtration stage, while the housing protects and supports the filtration component during operation.

The system can be integrated with water tanks, pumps, pressure regulators, water meters and automatic drinking lines to create a complete poultry water-treatment arrangement.

Maintenance Requirements

• Clean the filter element at regular intervals.

• Replace the filter element when required.

• Inspect the housing for cracks or leakage.

• Check inlet and outlet connections.

• Monitor water flow for signs of blockage.

• Keep seals and fittings properly maintained.

• Flush the filtration system when required.

• Maintain the system according to water quality and manufacturer recommendations.

Safety Features

The enclosed filtration arrangement helps protect the filter element and provides a controlled path for water flow. Secure pipe connections, proper installation and regular inspection should be maintained to prevent leakage and ensure reliable operation of the poultry drinking-water system.
