Machine-Specific Specifications

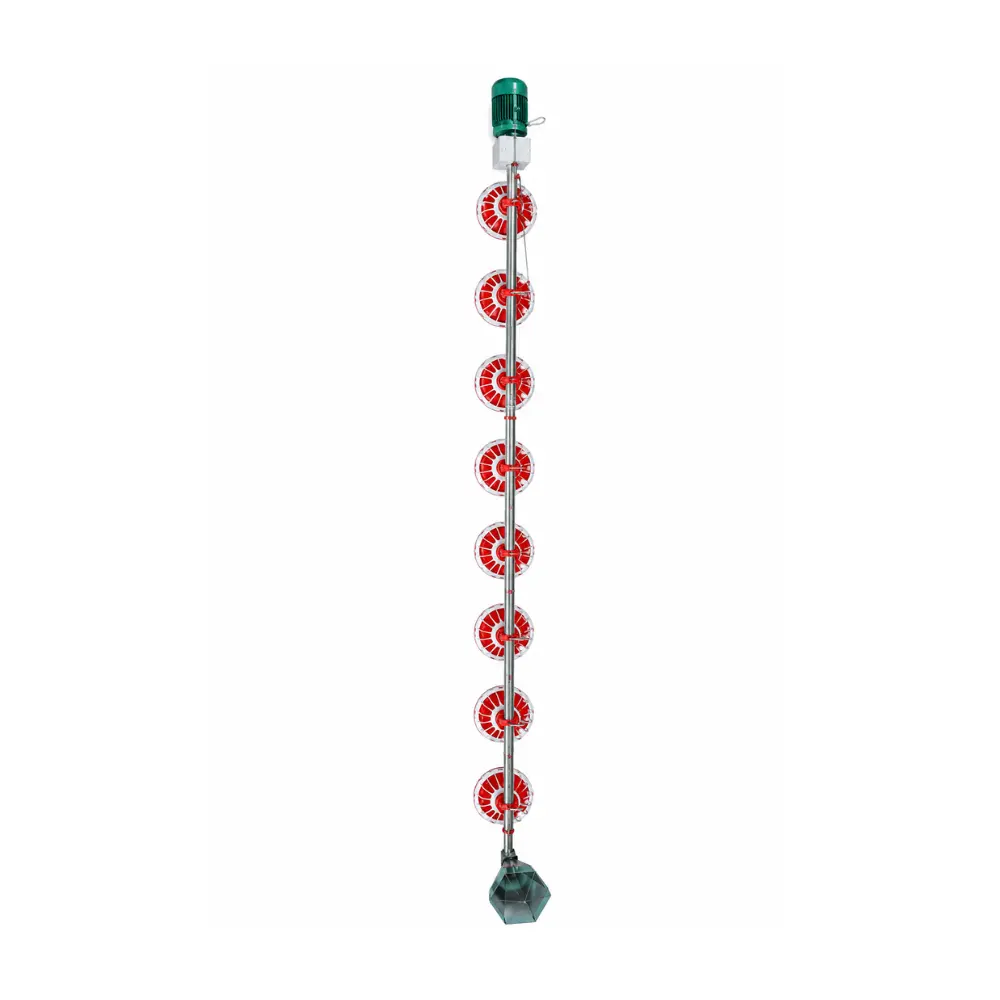

Automatic Pan Feeding System

The Automatic Pan Feeding System is designed to provide consistent and efficient feed distribution throughout poultry houses. Its continuous feeding arrangement delivers feed to multiple feeding pans positioned along the line, helping maintain convenient and uniform access to feed for poultry.

Feed Hopper

The integrated feed hopper serves as the central feeding point for the system. It allows poultry feed to be loaded efficiently and supplied into the conveying line for continuous distribution across the feeding stations.

Feed Conveying Line

The feed conveying line transports poultry feed smoothly from the hopper to the individual feeding points. Its extended line configuration makes it suitable for distributing feed across long poultry-house layouts while reducing the need for manual feeding.

Feeding Pans

Durable circular feeding pans are arranged at regular intervals along the feeding line. Each pan provides a dedicated feeding area, helping distribute feed evenly and allowing birds convenient access during feeding.

Drive Motor

A dedicated electric motor powers the feeding mechanism and supports continuous movement of feed through the conveying line. The motor-driven arrangement is designed for reliable operation during routine poultry feeding cycles.

Suspension System

The feeding line is designed with a suspended mounting arrangement that keeps the system elevated above the poultry-house floor. This configuration helps maintain an organized feeding area and allows the feeding height to be adjusted according to poultry requirements and installation conditions.

Working Principle

Poultry feed is loaded into the central hopper and introduced into the conveying system. The motor-driven mechanism transports the feed along the feeding line and supplies it to the individual feeding pans.

As feed reaches each feeding station, it becomes available for poultry consumption. The automatic distribution process helps maintain a more consistent feeding arrangement while reducing manual handling and labor requirements.

Main Applications

• Broiler poultry farms

• Layer poultry farms

• Commercial poultry houses

• Large-scale poultry production facilities

• Modern poultry sheds

• Controlled-environment poultry houses

• Automated poultry feeding operations

Key Features

• Automatic and continuous feed distribution

• Multiple feeding pans arranged along the feeding line

• Efficient motor-driven feed conveying

• Centralized feed loading through the hopper

• Uniform distribution across multiple feeding stations

• Durable feeding-pan construction

• Suspended installation arrangement

• Reduced requirement for manual feed handling

• Suitable for extended poultry-house layouts

• Practical solution for commercial poultry farming

Construction Details

The system incorporates a robust feed-conveying line supported by a durable structural arrangement. Multiple circular feeding pans are positioned along the line to create convenient feeding stations for poultry.

The feeding assembly is designed using durable polymer components, while the main support and conveying structure provides the required strength for regular farm operation. A centralized hopper supplies feed to the conveying line, while the motorized drive system facilitates continuous feed movement throughout the setup.

Maintenance Requirements

• Clean the feeding pans regularly to maintain proper hygiene.

• Remove accumulated feed particles and dust from the conveying line.

• Inspect the feed line periodically for blockages or material buildup.

• Check the drive motor and mechanical components during routine maintenance.

• Inspect feeding pans for cracks, wear or physical damage.

• Ensure smooth feed movement throughout the complete feeding line.

• Check suspension supports and mounting components regularly.

• Maintain electrical connections and components according to recommended service procedures.

• Lubricate applicable mechanical components as recommended by the manufacturer.

Safety Features

The system incorporates protective arrangements around the motorized drive and mechanical feeding components to support safer operation. Proper installation, electrical protection, regular maintenance and appropriate guarding should be maintained throughout the feeding system.

For commercial installation, additional safety provisions such as overload protection, emergency-stop controls, electrical protection devices and operational sensors should be selected according to the system configuration and applicable poultry-farm safety requirements.
