Feed Mixer Machinery

Feed Mixing System

Feed Mixer Machinery is designed to blend different feed ingredients into a consistent and uniform mixture for poultry and livestock applications. The mixing process helps distribute grains, supplements, minerals, proteins and other formulated ingredients evenly throughout the batch.

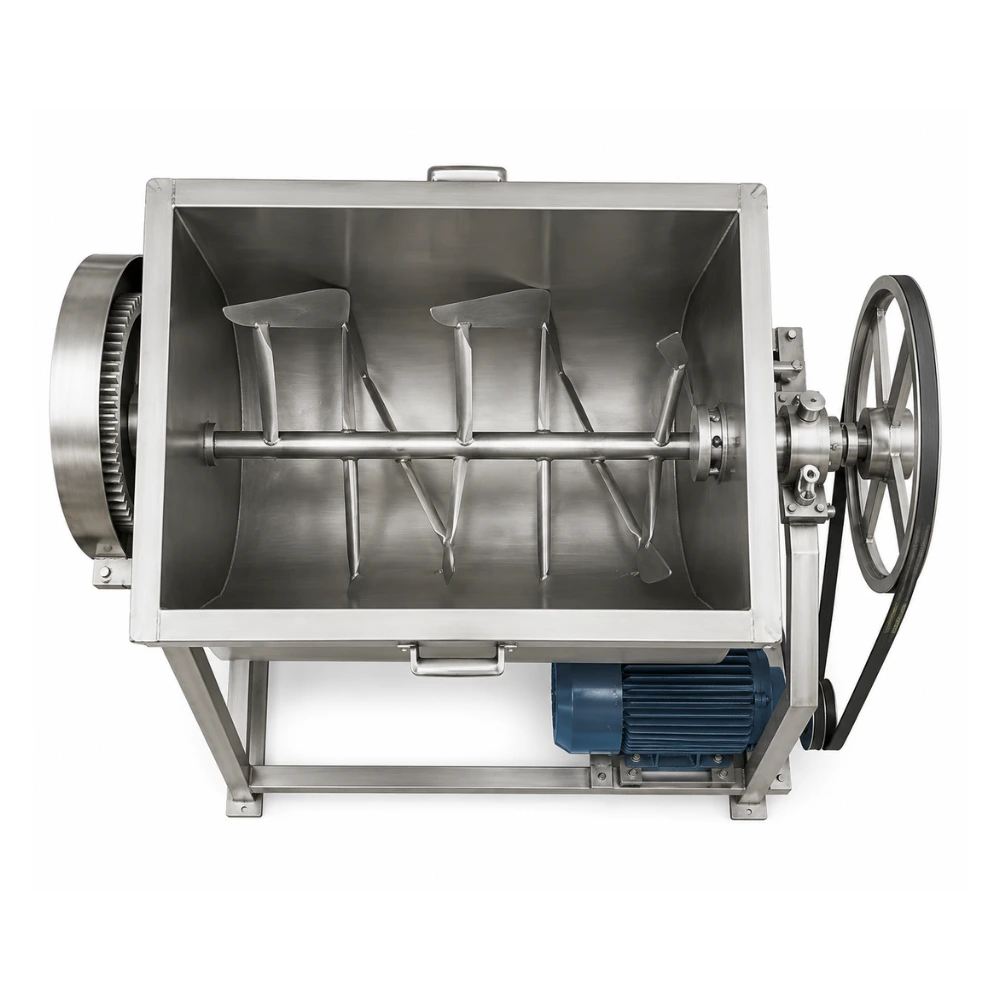

Mixing Chamber

The mixing chamber provides the main working area where different feed ingredients are combined. Its internal configuration is designed to promote thorough mixing and maintain a consistent blend throughout the batch.

Mixing System

The machine uses a mechanical mixing arrangement to combine feed ingredients efficiently. The mixing mechanism is designed to minimize uneven ingredient distribution and produce a more homogeneous feed mixture.

Feed Inlet

The upper feed inlet provides a convenient point for loading ingredients into the mixing chamber. It can be connected with manual loading equipment, hoppers or other feed-handling systems depending on the production setup.

Discharge System

The discharge arrangement allows the finished feed mixture to be transferred from the mixing chamber to a conveyor, hopper, storage unit or subsequent processing equipment.

Drive Motor

An electric motor powers the mixing mechanism and provides the required mechanical movement for blending the ingredients. The motor-driven arrangement supports consistent mixing during each operating cycle.

Working Principle

Different feed ingredients are introduced into the mixing chamber according to the required formulation. The motor-driven mixing mechanism rotates the internal mixing components, continuously moving and combining the ingredients.

As the mixing cycle progresses, the ingredients become evenly distributed throughout the batch. Once the required mixing process is completed, the finished feed is discharged through the designated outlet for storage or further processing.

Main Applications

• Poultry feed production

• Broiler feed preparation

• Layer feed preparation

• Cattle feed production

• Livestock feed manufacturing

• Animal nutrition facilities

• Commercial feed mills

• Integrated feed processing plants

Key Features

• Uniform feed ingredient mixing

• Efficient mechanical mixing system

• Suitable for different feed formulations

• Strong industrial construction

• Motor-driven operation

• Convenient ingredient loading

• Controlled feed discharge

• Suitable for batch-based production

• Easy integration with feed-processing equipment

• Designed for commercial feed production

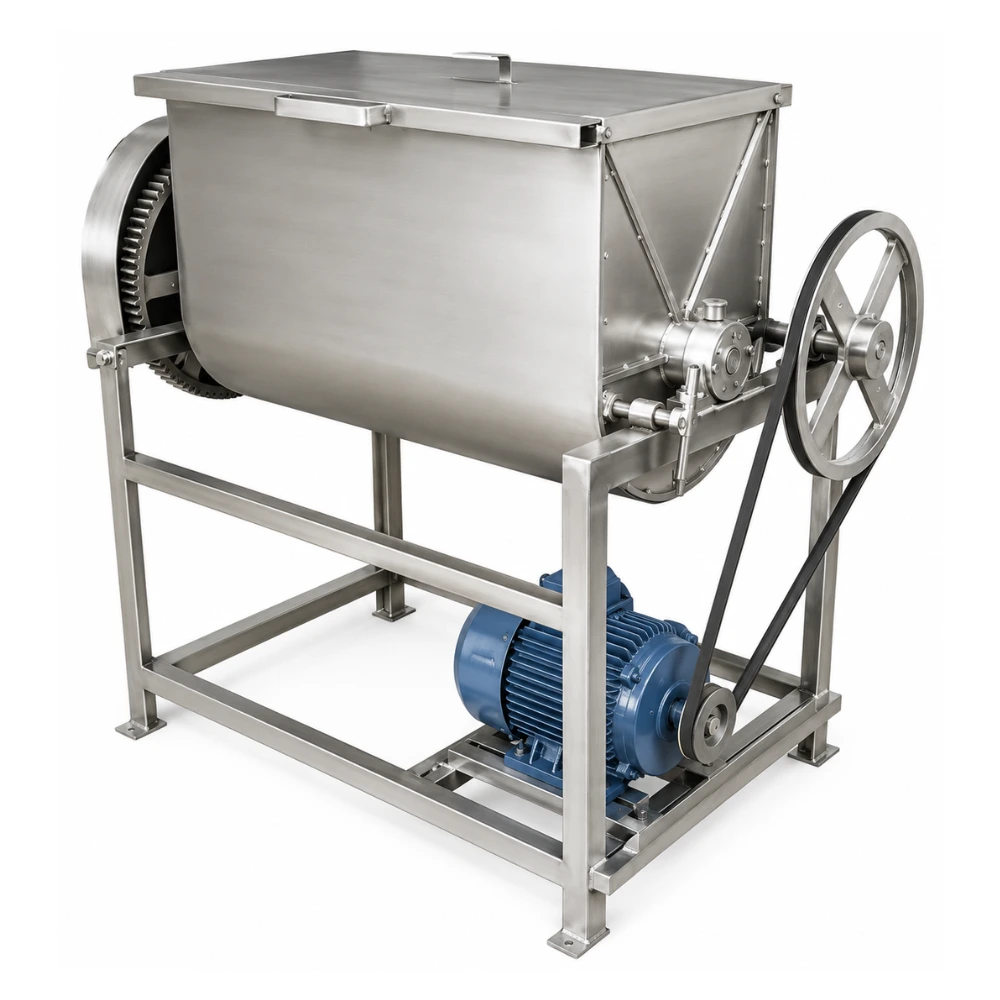

Construction Details

The Feed Mixer Machinery consists of a robust mixing chamber supported by a stable structural frame. The internal mixing assembly is designed to move and combine feed ingredients throughout the chamber, while the upper section provides access for ingredient loading.

A dedicated drive motor operates the mixing mechanism, and the discharge section allows the finished mixture to be transferred to the next stage of the feed-production process.

Maintenance Requirements

• Clean the mixing chamber after appropriate production cycles.

• Remove residual feed from the internal mixing area.

• Inspect mixing components for wear or damage.

• Check the motor and drive components regularly.

• Inspect bearings, shafts and mechanical connections.

• Keep the discharge outlet free from material buildup.

• Check electrical connections during routine servicing.

• Lubricate applicable mechanical components according to manufacturer recommendations.

Safety Features

The machine should incorporate suitable guarding around moving mechanical components and the drive assembly. Secure access covers, stable mounting and appropriate electrical protection should be maintained during operation. Emergency-stop and overload-protection systems should be provided according to the machine configuration and applicable industrial safety requirements.
