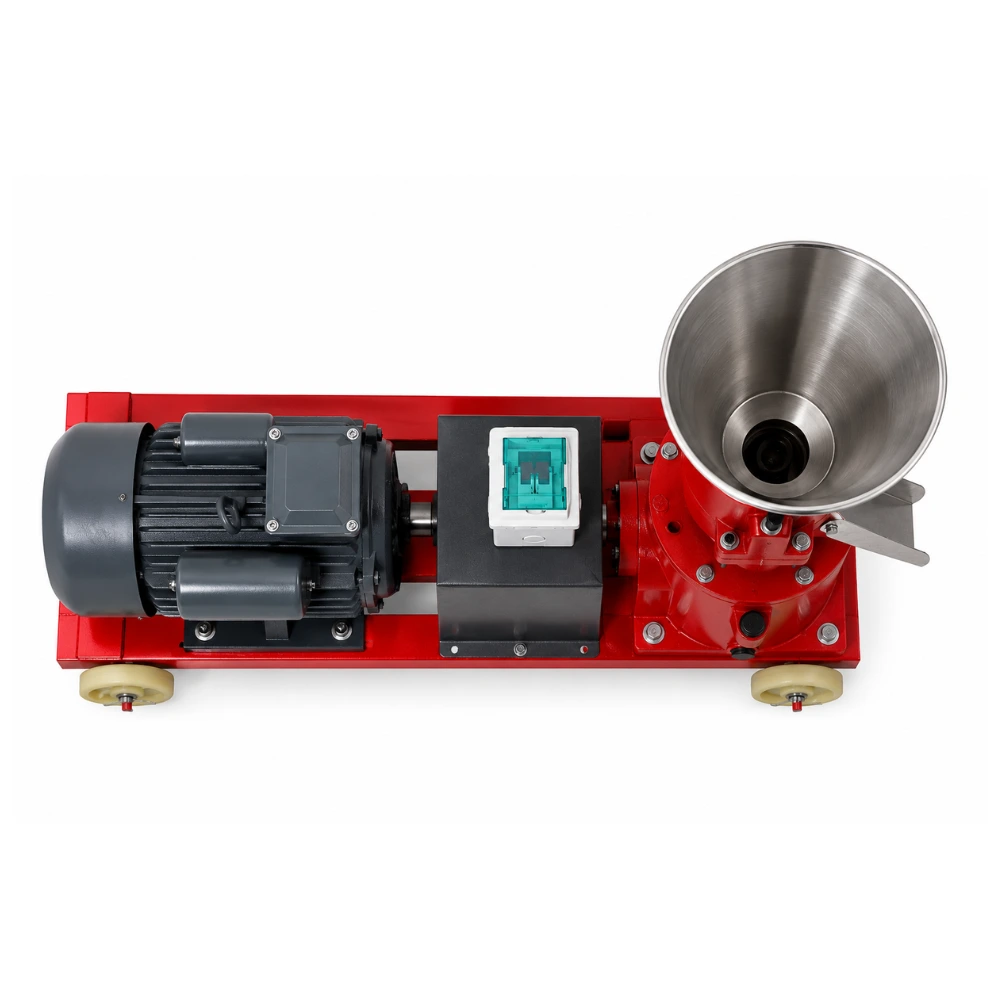

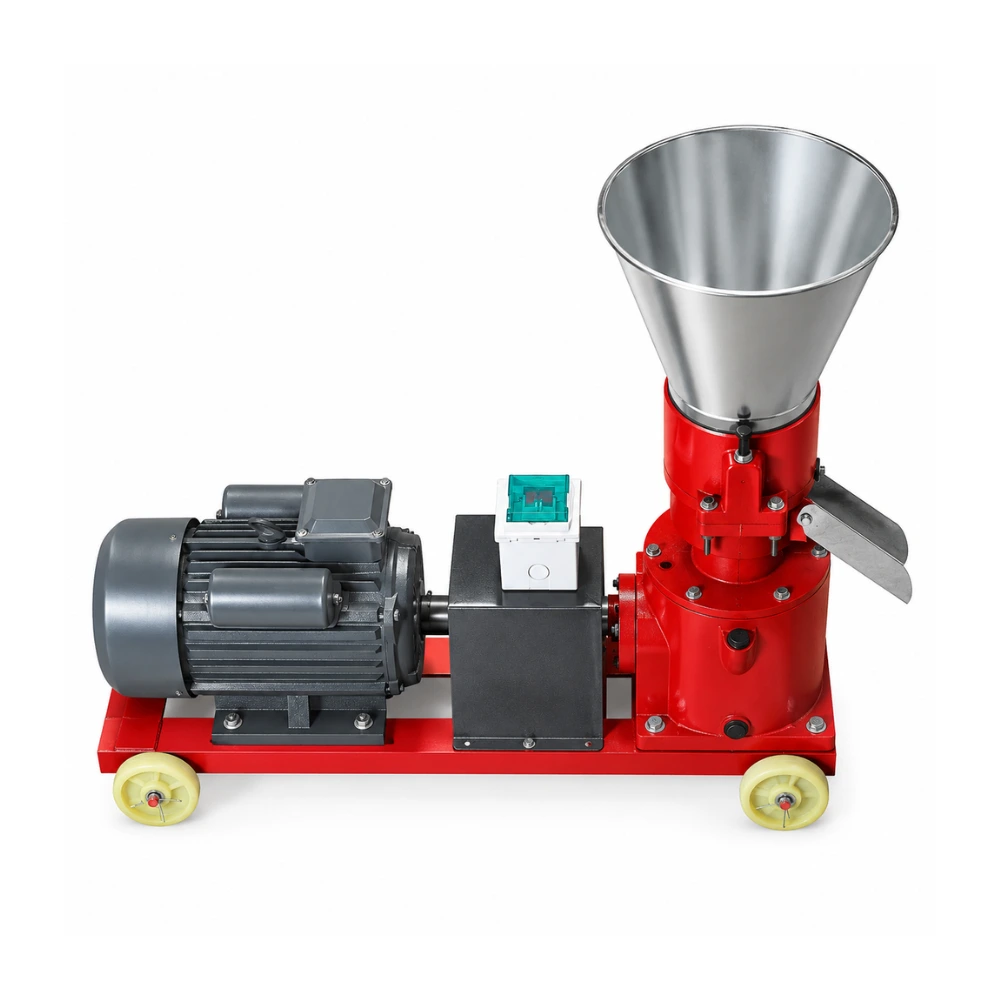

Feed Pellet Machine

Feed Pelletizing System

The Feed Pellet Machine is designed to convert prepared feed ingredients into compact, uniform pellets for poultry and livestock applications. Pelletizing improves feed handling, simplifies storage and transportation, and provides a convenient form for controlled animal feeding.

Feed Preparation & Conditioning

Prepared feed material is supplied to the pelletizing section after suitable grinding and mixing. Depending on the formulation and machine configuration, conditioning may be used to prepare the feed for efficient pellet formation.

Pelletizing Chamber

The pelletizing chamber contains the main compression and forming mechanism. Feed material is compacted and shaped into pellets as it passes through the pellet-forming assembly.

Die System

The die determines the approximate diameter and shape of the finished pellets. Different die configurations can be selected according to the animal type, feed formulation and required pellet size.

Roller System

The roller assembly works with the die to compress the prepared feed material and force it through the die openings. This continuous compression process produces compact feed pellets.

Feed Inlet

The feed inlet allows prepared feed material to enter the pelletizing chamber in a controlled manner. It can be connected to a mixer, hopper or conveyor as part of an integrated feed-processing line.

Pellet Discharge

After formation, the pellets are discharged from the pelletizing section for cooling, screening, storage or further processing.

Working Principle

Prepared and properly mixed feed material enters the pelletizing chamber. The rotating pelletizing mechanism compresses the material against the die, forcing it through the die openings to form continuous strands of compacted feed.

The formed material is then separated into pellets and transferred through the discharge section. Pellet size and final characteristics depend on the die configuration, formulation and operating conditions.

Main Applications

• Poultry feed production

• Broiler feed manufacturing

• Layer feed production

• Cattle feed production

• Livestock feed manufacturing

• Animal nutrition facilities

• Commercial feed mills

• Integrated feed-processing plants

Key Features

• Efficient feed pellet formation

• Compact and uniform pellet production

• Interchangeable die options

• Controlled pellet size

• Heavy-duty pelletizing construction

• Motor-driven operation

• Suitable for different feed formulations

• Convenient feed loading and discharge

• Easy integration with mixers and conveyors

• Suitable for commercial feed production

Construction Details

The Feed Pellet Machine incorporates a sturdy pelletizing assembly supported by a rigid structural frame. The feed inlet supplies prepared material to the compression area, while the die and roller arrangement forms the feed into compact pellets.

The machine can be integrated with feed grinders, mixers, conveyors, coolers and screening systems to create a complete pellet-feed production line.

Maintenance Requirements

• Clean the pelletizing chamber after suitable production cycles.

• Remove residual feed from the die and roller area.

• Inspect the die openings for blockage or wear.

• Check rollers and other compression components regularly.

• Inspect bearings, shafts and drive components.

• Check fasteners and structural connections.

• Keep the feed inlet and discharge section clean.

• Lubricate applicable mechanical components according to manufacturer recommendations.

Safety Features

The pelletizing and drive mechanisms should remain properly guarded during operation. Protective covers, secure access points and suitable electrical protection should be maintained around moving components. Emergency-stop and overload-protection systems should be incorporated according to the machine configuration and applicable industrial safety requirements.
