Chain Feeding System

Chain Feeding System – Machine-Specific Specifications

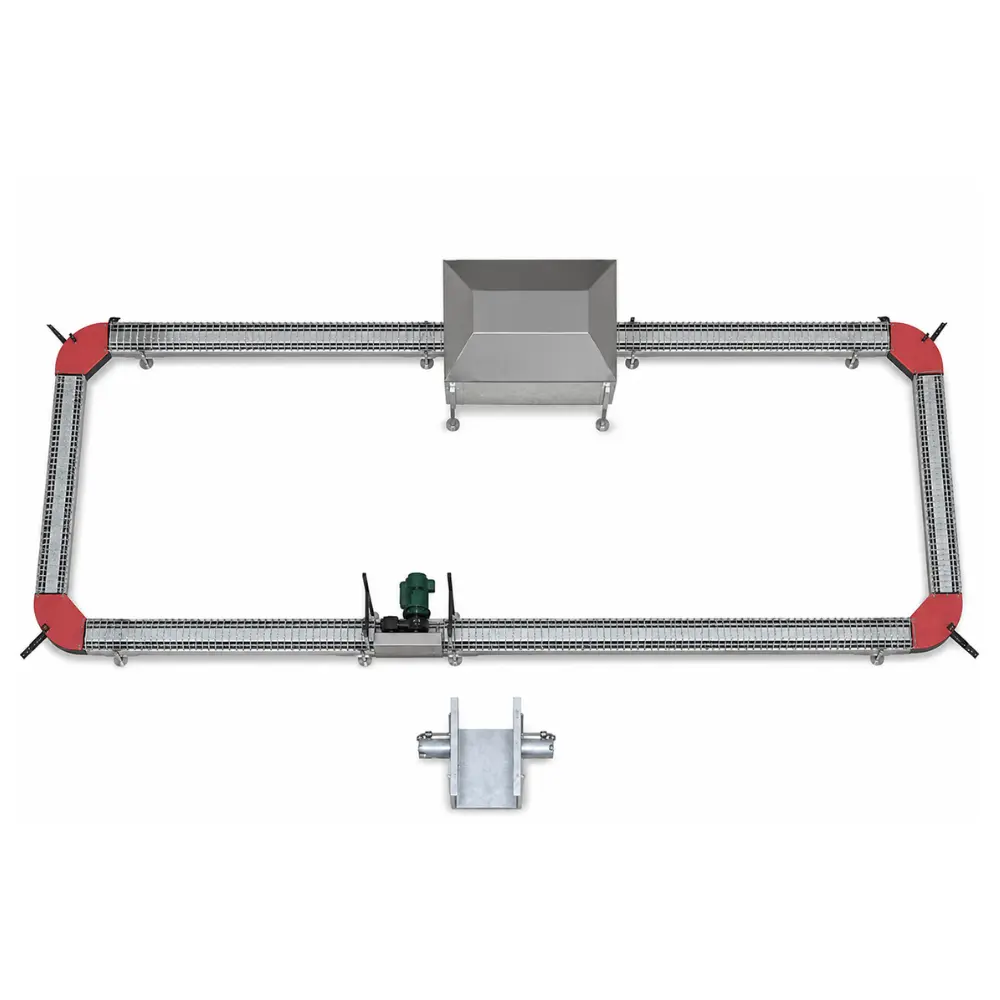

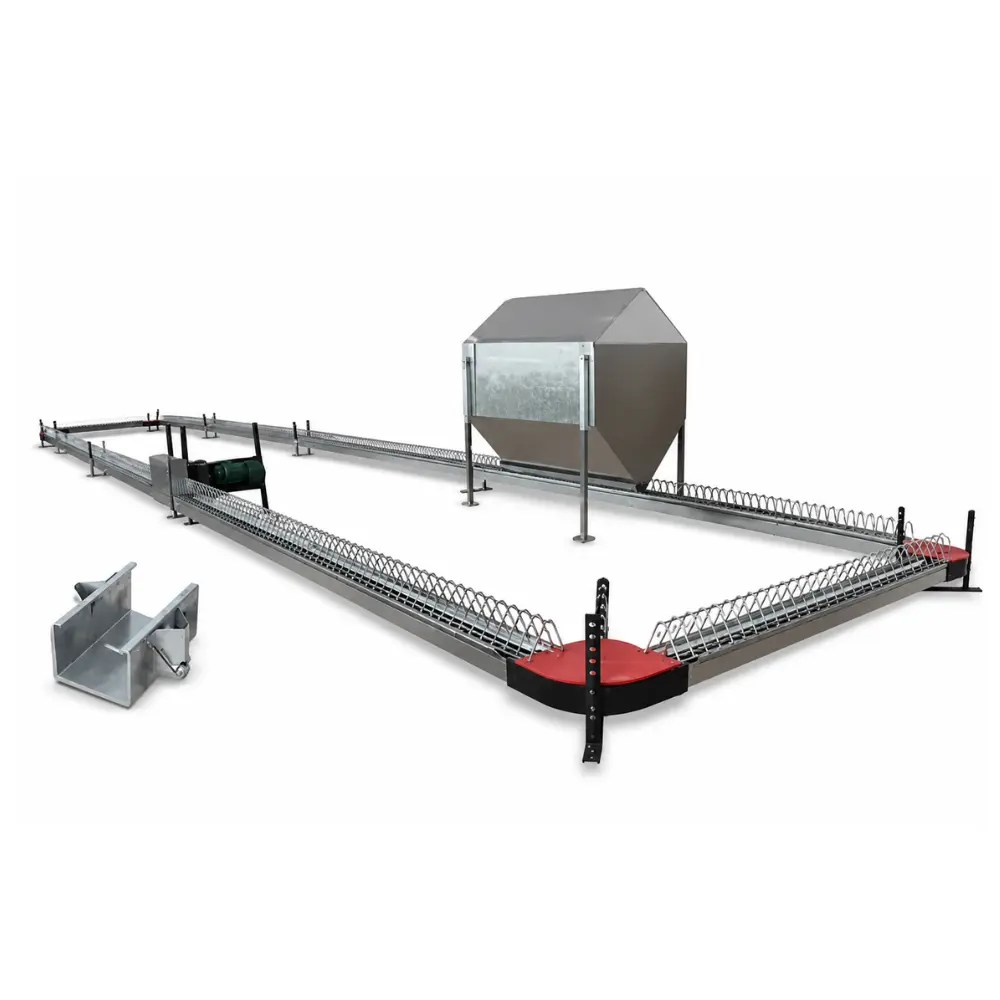

Chain Feeding System

The Chain Feeding System is designed for efficient and continuous distribution of poultry feed across multiple feeding locations. It uses a motor-driven chain mechanism to transport feed through the feeding line, providing birds with a consistent supply of feed throughout the poultry house.

Feed Hopper

The feed hopper acts as the primary feed-loading point and supplies formulated poultry feed to the chain conveyor. Its design supports controlled entry of feed into the conveying system for smooth and consistent distribution.

Chain Conveyor System

The heavy-duty chain conveyor transports feed along the complete feeding line. The continuous chain movement helps carry feed from the loading point to multiple feeding locations while minimizing manual feeding requirements.

Feed Trough

A dedicated feed trough runs along the feeding line and provides a defined area for feed distribution. Its extended configuration makes it suitable for supplying feed across long poultry-house layouts.

Drive Motor

The electric drive motor powers the chain mechanism and maintains continuous movement of the feeding chain. The motorized system is designed for reliable operation during scheduled or continuous poultry feeding cycles.

Feed Distribution

Feed is progressively distributed along the feeding line as the chain moves through the trough. This arrangement helps provide poultry with convenient access to feed at different locations within the house.

Working Principle

Poultry feed is introduced into the system through the feed hopper. The electric motor drives the chain mechanism, causing the feeding chain to travel continuously through the feed trough.

As the chain moves, it carries feed along the feeding route and distributes it across the designated feeding area. The system can be arranged according to the length and layout of the poultry house, reducing manual feed handling and improving feeding efficiency.

Main Applications

• Broiler poultry farms

• Layer poultry farms

• Commercial poultry houses

• Large-scale poultry production facilities

• Cage-free poultry houses

• Modern poultry sheds

• Automated poultry feeding operations

Key Features

• Continuous chain-based feed conveying

• Automatic poultry feed distribution

• Motor-driven feeding operation

• Long-distance feed transportation

• Consistent feed availability

• Suitable for extended poultry-house layouts

• Reduced manual feeding requirements

• Robust chain and trough arrangement

• Centralized feed loading

• Suitable for commercial poultry farming

Construction Details

The Chain Feeding System consists of a continuous feeding chain, feed trough, drive assembly, feed inlet and supporting components. The chain travels through the trough and transports feed along the designated feeding route.

The system can be installed in extended lines to cover large poultry houses. Its modular arrangement allows feeding sections and line lengths to be configured according to farm requirements.

Maintenance Requirements

• Clean the feed trough regularly to maintain hygiene.

• Remove accumulated feed and dust from the chain and trough.

• Inspect the feeding chain for wear, stretching or damage.

• Check sprockets and drive components periodically.

• Inspect the motor and electrical connections.

• Ensure proper chain tension and alignment.

• Check feed inlets for blockages.

• Inspect support and mounting components.

• Lubricate applicable mechanical components according to manufacturer recommendations.

Safety Features

The Chain Feeding System should incorporate suitable protection around moving chain, sprocket and drive components to minimize operator contact with moving parts. Proper electrical protection, emergency-stop arrangements and appropriate guarding should be provided according to the installation configuration and applicable poultry-farm safety requirements.
