Battery Cage System

Battery Cage System

The Battery Cage System is designed for organized and space-efficient housing of laying birds in commercial egg-production facilities. Its multi-tier cage arrangement allows a higher number of birds to be housed within a limited floor area while supporting integrated feeding, drinking, egg collection and manure-management operations.

Cage Structure

The system consists of interconnected cage compartments arranged in rows and multiple levels. Each compartment provides a designated housing area for laying birds while the structural framework maintains stability throughout the installation.

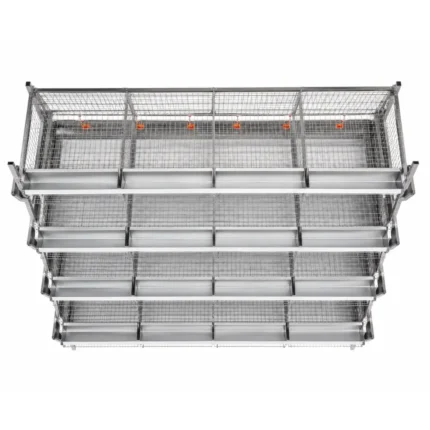

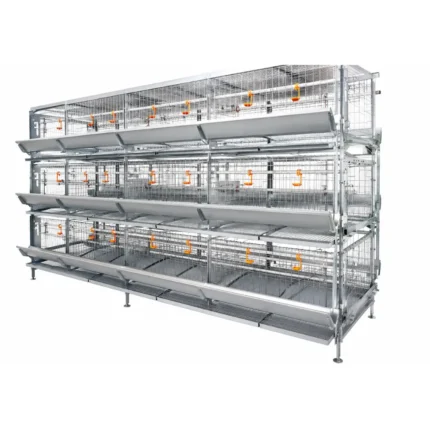

Multi-Tier Configuration

Multiple cage levels are positioned vertically to maximize the use of available poultry-house space. The number of tiers and cage arrangement can be configured according to flock size, building dimensions and production requirements.

Feeding System

Automatic feeding lines can be installed along the cage rows to provide consistent access to feed. Feed hoppers, conveyors and distribution equipment can be integrated for efficient feed delivery across the complete cage arrangement.

Drinking System

Nipple drinking lines can be positioned inside the cage rows to provide controlled access to drinking water. Water filters, pressure regulators and storage tanks can be connected to maintain a reliable drinking-water supply.

Egg Collection System

The cage structure supports organized egg collection by providing a dedicated area through which eggs can move toward the collection side. Depending on the configuration, egg collection can be handled manually or through an automated collection system.

Manure Management

Manure collection equipment is positioned beneath the cage levels to facilitate regular waste removal. Manure belts, scrapers or other suitable systems can be integrated according to the cage configuration and farm requirements.

Working Principle

Layer birds are housed within individual cage compartments arranged in multiple levels. Feed is supplied through the feeding system, while drinking water is delivered through the connected nipple lines.

After laying, eggs move toward the designated collection area, while manure falls or is collected beneath the cage levels and transferred through the selected manure-management system. This integrated setup helps streamline daily operations in commercial egg-production facilities.

Main Applications

• Commercial layer farms

• Egg production farms

• Large-scale poultry houses

• Intensive layer farming operations

• Modern poultry production facilities

• Automated poultry farms

• Environment-controlled layer houses

• Commercial egg-production units

Key Features

• Multi-tier cage configuration

• Efficient use of poultry-house space

• High-density layer housing

• Automatic feeding-system compatibility

• Nipple drinking-system compatibility

• Organized egg collection

• Integrated manure-management options

• Durable structural framework

• Suitable for large commercial layer farms

• Supports efficient flock management

Construction Details

The Battery Cage System consists of multiple cage compartments arranged in rows and vertically stacked levels. A durable structural framework supports the cage sections and associated feeding, drinking and waste-management equipment.

The system can be integrated with automatic feed conveyors, nipple drinking lines, egg-collection equipment and manure-removal systems to create a complete commercial layer-house setup.

Maintenance Requirements

• Inspect cage frames, wires and structural supports regularly.

• Check feeding lines and feed-distribution components.

• Inspect nipple drinkers and water lines for leakage or blockage.

• Keep egg-collection areas clean and unobstructed.

• Remove accumulated manure according to the farm's cleaning schedule.

• Inspect cage joints, fasteners and support connections.

• Replace damaged or worn cage components when required.

• Maintain integrated feeding, drinking and waste-management equipment according to manufacturer recommendations.

Safety Features

The Battery Cage System provides a stable multi-level housing structure with organized feeding and drinking arrangements. Secure cage connections, properly fitted access doors, stable support structures and regular inspections should be maintained to provide a safe and reliable environment for poultry and farm personnel.
