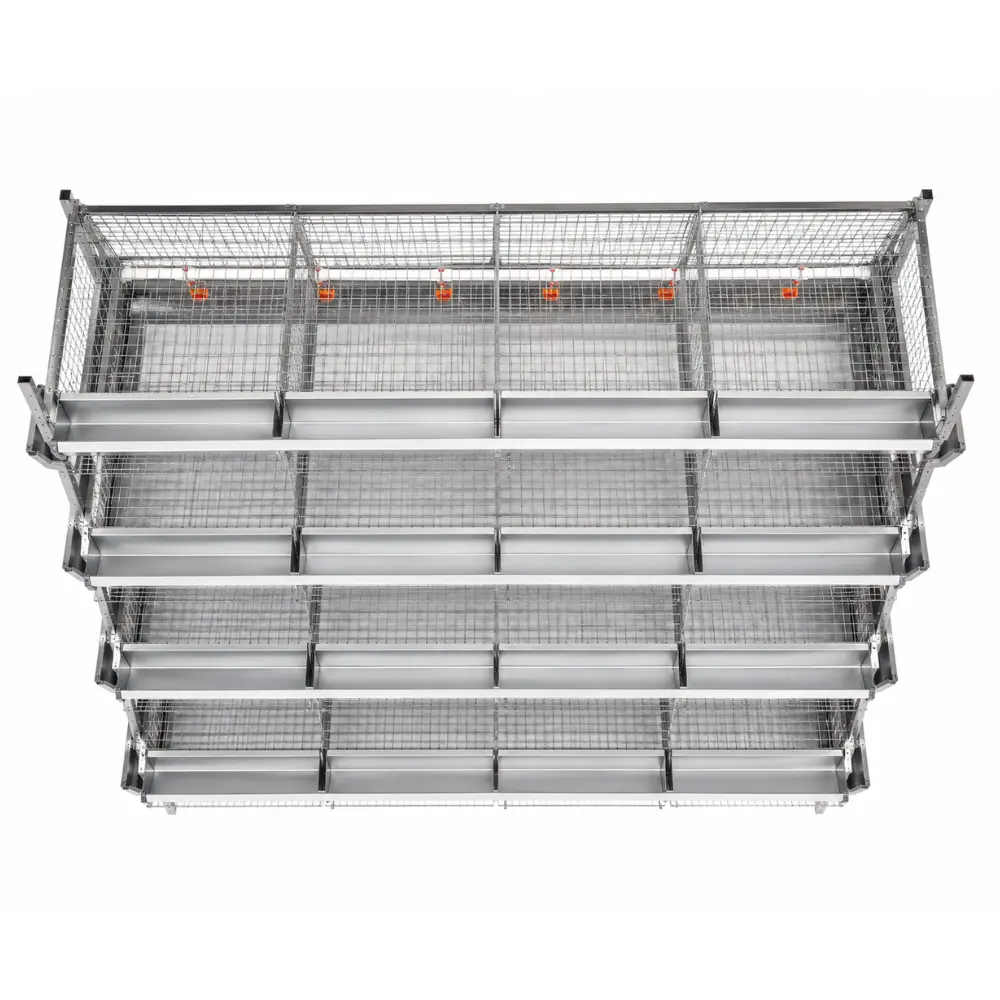

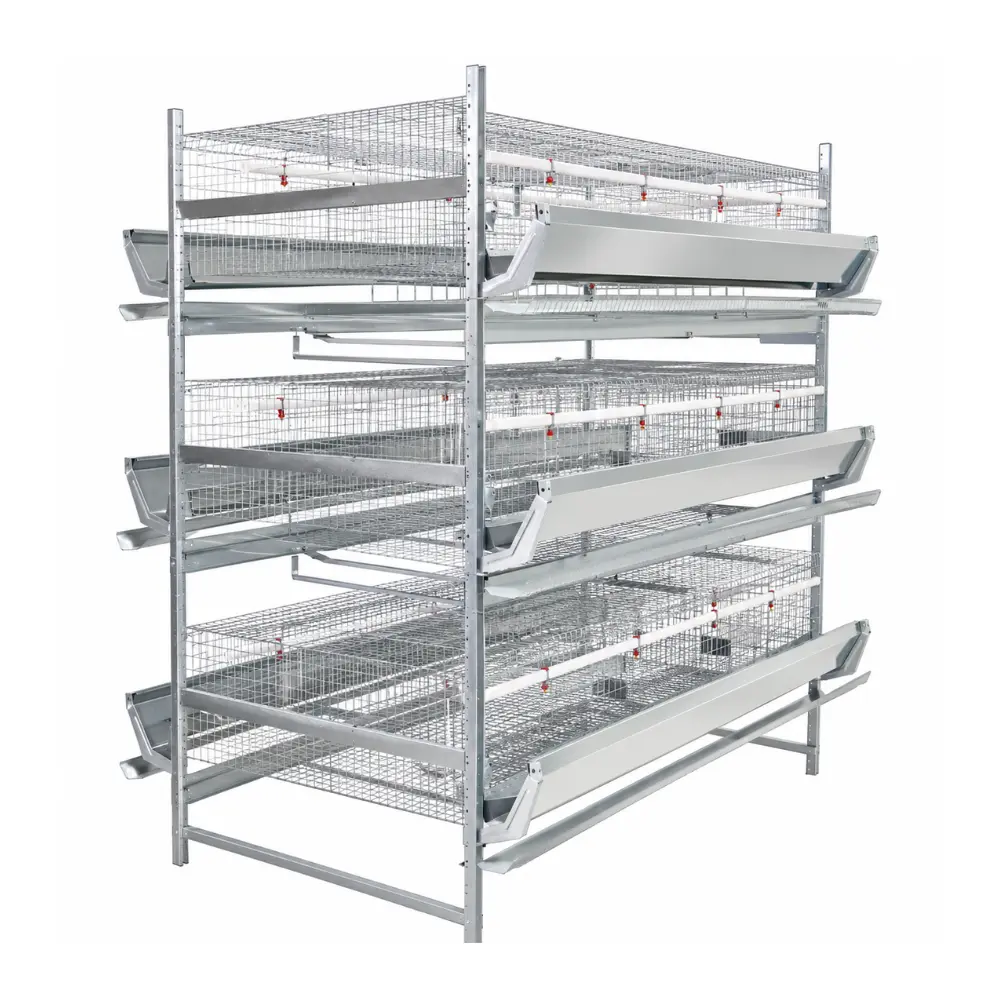

H Type Cage System

H Type Poultry Cage System

The H Type Cage System is designed for high-density and organized housing of laying birds in commercial poultry farms. Its vertically arranged cage structure makes efficient use of available floor space while supporting integrated feeding, drinking, egg collection and manure-management operations.

Cage Structure

The H-type configuration uses vertically arranged cage rows supported by a strong structural framework. This arrangement provides dedicated housing compartments while allowing multiple cage levels to be installed within the poultry house.

Multi-Tier Configuration

Multiple cage levels can be arranged vertically to increase bird-housing capacity without requiring a proportional increase in floor space. The number of tiers can be configured according to building dimensions and production requirements.

Feeding System

Automatic feeding lines can be installed along the cage rows to provide consistent access to feed. Feed hoppers, conveyors and distribution equipment can be integrated to support efficient feeding across multiple cage levels.

Drinking System

Nipple drinking lines can be positioned within the cage compartments to provide birds with controlled access to drinking water. Filters, pressure regulators and water-storage equipment can be incorporated into the complete drinking system.

Egg Collection System

The cage arrangement supports an organized egg-collection process, allowing eggs to move from the laying area toward designated collection points. Manual or automated collection equipment can be integrated depending on the farm configuration.

Manure Management

Dedicated manure-handling arrangements can be installed beneath the cage levels. Manure belts, scrapers or other suitable systems can be used to transfer accumulated waste away from the cage area.

Working Principle

Layer birds are housed in individual cage compartments arranged across multiple vertical levels. Feed is supplied through the integrated feeding system, while drinking water is delivered through nipple drinking lines.

Eggs move toward the collection area after laying, while manure is collected beneath the cage levels and transferred through the selected waste-management system. This integrated arrangement supports efficient management of large commercial layer houses.

Main Applications

• Commercial layer farms

• Large-scale egg production farms

• Intensive poultry farms

• High-density layer houses

• Modern poultry production facilities

• Automated poultry farms

• Environment-controlled layer houses

• Commercial egg-production operations

Key Features

• H-shaped multi-tier cage configuration

• High-density bird housing

• Efficient utilization of vertical space

• Automatic feeding-system compatibility

• Nipple drinking-system compatibility

• Organized egg collection

• Integrated manure-management options

• Durable structural framework

• Suitable for large commercial layer farms

• Supports organized poultry-house management

Construction Details

The H Type Cage System consists of vertically arranged cage sections supported by a rigid structural framework. Its multi-tier configuration allows several cage levels to be installed within the available poultry-house area.

The system can be integrated with automatic feeding lines, nipple drinking systems, egg-collection equipment and manure-removal systems to create a complete layer-farming setup.

Maintenance Requirements

• Inspect cage frames, wires and structural supports regularly.

• Check feeding equipment for proper operation.

• Inspect nipple drinkers and water lines for leakage or blockage.

• Keep egg-collection areas clean and unobstructed.

• Remove manure according to the farm's cleaning schedule.

• Inspect cage joints, fasteners and support connections.

• Replace damaged or worn components when required.

• Maintain integrated feeding, drinking and manure-management equipment according to manufacturer recommendations.

Safety Features

The H Type Cage System incorporates a stable structural framework designed for multi-level poultry housing. Secure cage connections, properly fitted access doors, stable support structures and routine inspections should be maintained to provide safe and reliable operation for both birds and farm personnel.
