Bottle Capping Machine
Original price was: $100.00.$75.00Current price is: $75.00.

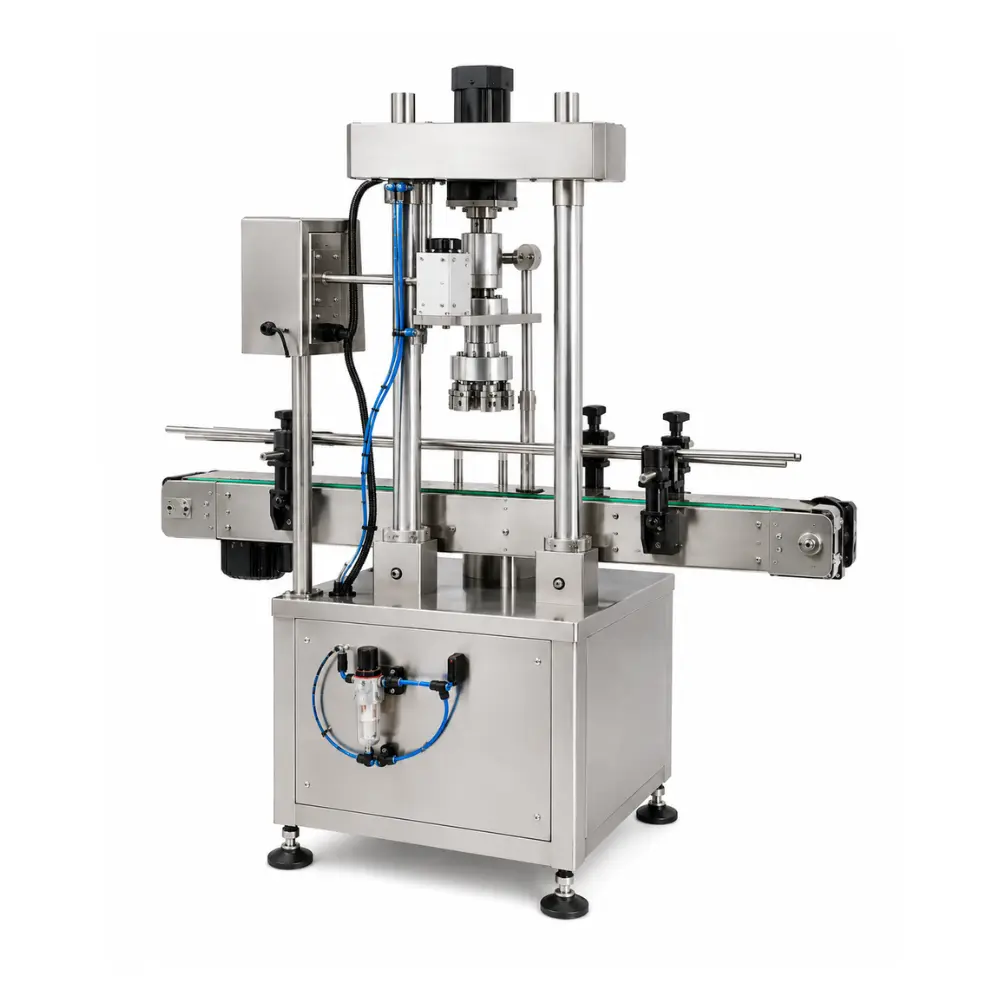

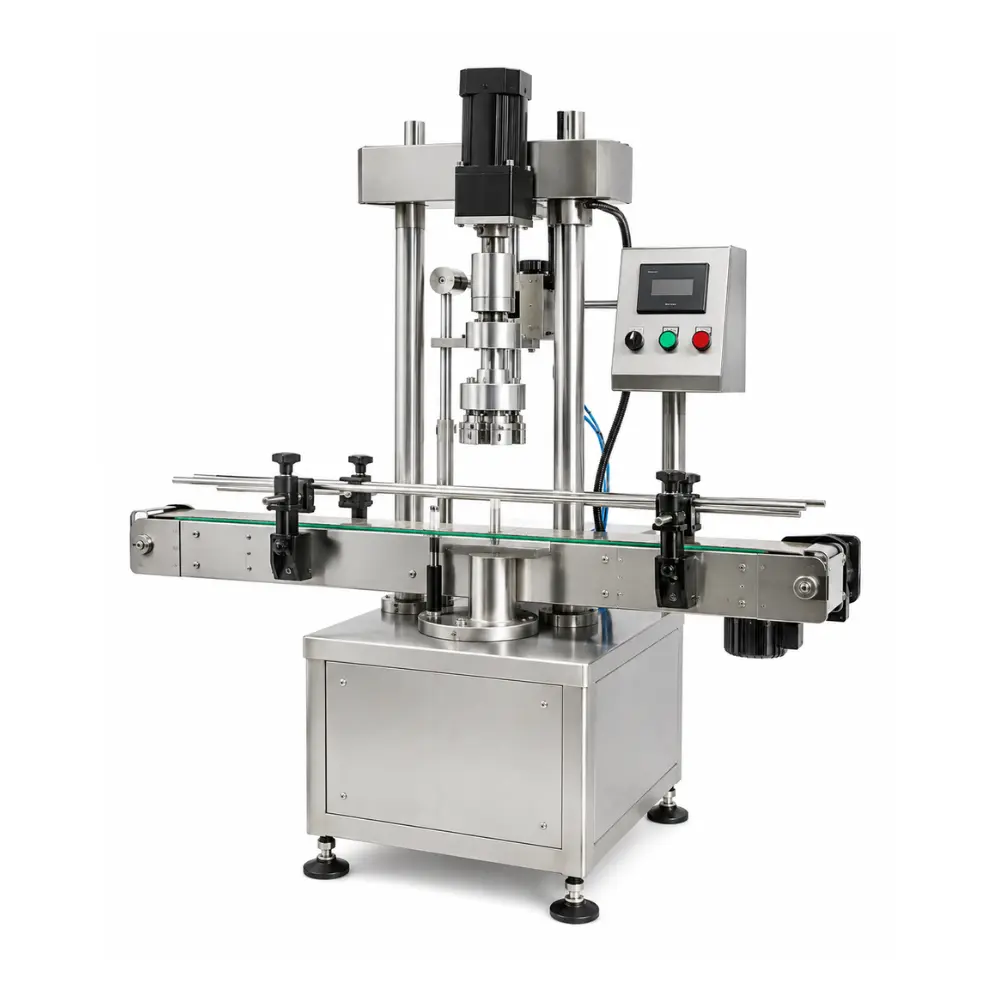

The Bottle Capping Machine by TRADE SBE is designed to securely tighten and apply caps to bottles in commercial and industrial packaging operations. The machine shown features a stainless steel frame, an adjustable bottle conveyor, a motorized capping head, and a control panel for convenient operation. It helps improve packaging efficiency and supports consistent cap application for compatible bottles and closures. Depending on the model, it can be used for packaging juice, water, milk, edible oil, sauces, and other liquid products. TRADE SBE offers suitable configurations for different production requirements, with customization, export packing, shipping support, and installation assistance available on request.
Product Applications
Beverage Industries: Capping bottles filled with juice, water, and other beverages.
Dairy Processing Plants: Closing compatible milk and dairy beverage bottles.
Edible Oil Industries: Applying caps to cooking oil bottles.
Food Processing Units: Capping bottles containing sauces, syrups, and liquid foods.
Pharmaceutical Industries: Closing compatible containers with a suitably specified machine.
Cosmetic Industries: Capping bottles containing shampoos, lotions, and other liquid products.
Packaging Lines: Integrating capping with filling, labeling, and conveyor systems.
Machine Operation
Preparation: Inspect the capping head, conveyor, bottle guides, and electrical connections.
Setup: Adjust the conveyor guides and capping head according to the bottle and cap dimensions.
Bottle Loading: Place filled bottles onto the conveyor with compatible caps positioned as required by the machine design.
Parameter Setting: Set the capping speed and torque or tightening parameters, where adjustable.
Starting: Switch on the machine using the control panel.
Capping Process: The conveyor moves bottles beneath the capping head, which applies or tightens the caps.
Quality Inspection: Check cap tightness, alignment, and sealing performance.
Discharge: Transfer capped bottles to the labeling or packing section.
Cleaning and Maintenance: Switch off and isolate the power supply before cleaning and servicing the machine.
Key Benefits
Consistent cap application for compatible closures.
Motorized capping operation for improved productivity.
Adjustable bottle guides for different bottle dimensions, depending on the model.
Stainless steel construction for suitable industrial environments.
Conveyor-based bottle handling.
Helps reduce manual capping work.
Supports integration into automated bottling lines.
Suitable for various compatible bottle and cap combinations.
Customization and international export support from TRADE SBE.
|
Specification |
Details |
Machine Type |
Automatic Bottle Capping Machine |
|---|---|
|
Application |
Plastic & Glass Bottles |
|
Capping System |
Screw Capping |
|
Capacity |
1,000–3,000 Bottles/Hour |
|
Capping Heads |
Single Head |
|
Cap Type |
Screw Caps |
|
Bottle Size |
Customizable |
|
Cap Size |
Customizable as per requirement |
|
Contact Parts |
SS 304 |
|
Conveyor |
Stainless Steel Belt Conveyor |
|
Control System |
PLC / Digital Control Panel |
|
Cap Tightening |
Adjustable Torque |
|
Operation |
Automatic Continuous |
|
Power Supply |
3 Phase, 415 V, 50 Hz |
|
Air Requirement |
Optional Pneumatic System |
|
Construction |
Heavy-Duty Stainless Steel |
|
Suitable For |
Water, Juice, Milk, Beverage, Pharmaceutical & Food Industries |
FAQ
Q1. What is a bottle capping machine used for?
It applies or tightens caps on bottles after filling to help close and secure the containers.
Q2. Which products can be packed using this machine?
Suitable applications may include water, juice, milk, edible oil, sauces, cosmetics, and other products, depending on the machine configuration.
Q3. Can the machine handle different bottle sizes?
Compatible bottle sizes depend on the conveyor guides and capping head adjustments. Confirm the required dimensions before ordering.
Q4. Which types of caps can it handle?
Cap compatibility depends on the capping head and closure design. Screw caps and other compatible closures may be supported by the appropriate model.
Q5. Can the machine be integrated with a filling machine?
Yes, compatible models can be integrated with filling machines, conveyors, labeling systems, and other packaging equipment.
Q6. Can capping tightness be adjusted?
Some models allow torque or tightening adjustments. The available controls depend on the selected configuration.
Q7. Does TRADE SBE export bottle capping machines internationally?
Yes, TRADE SBE provides export packing, shipping support, and relevant export documentation for international buyers.
