Coating Pan Machine | Nut & Confectionery Coater

Coating Pan

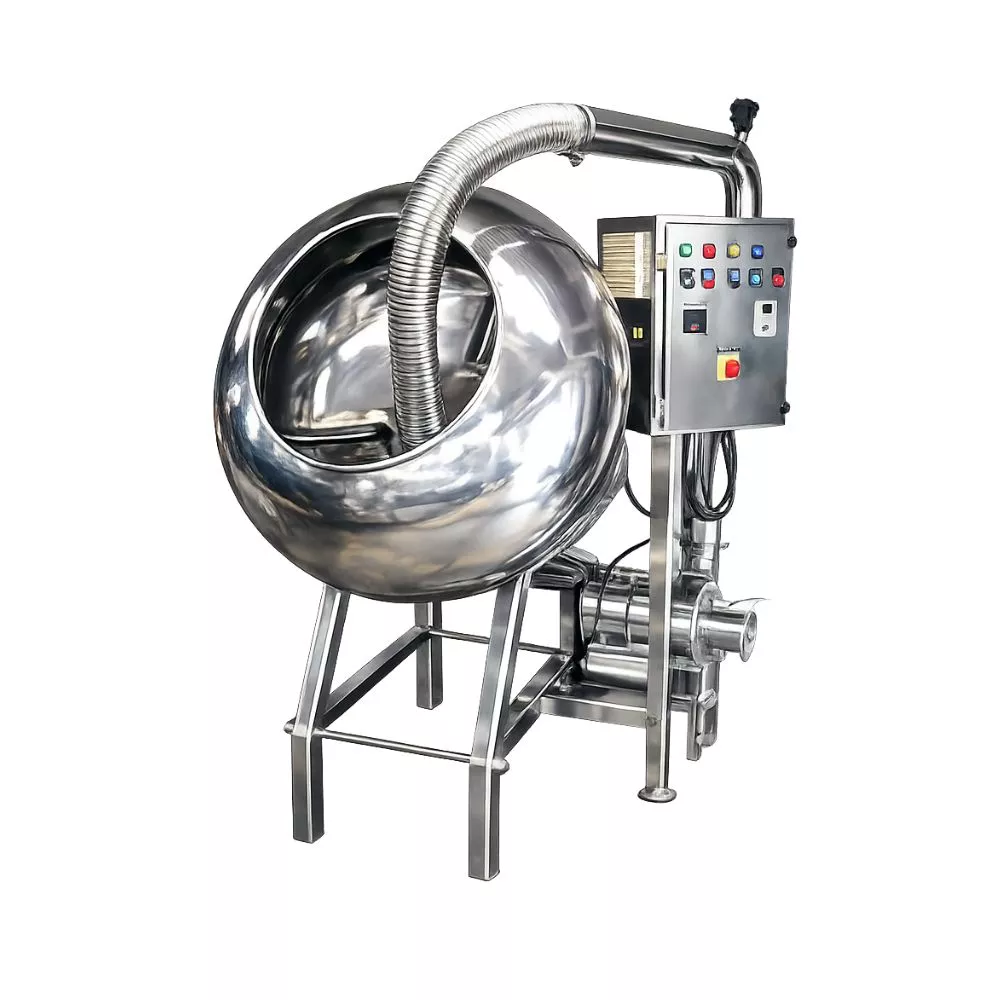

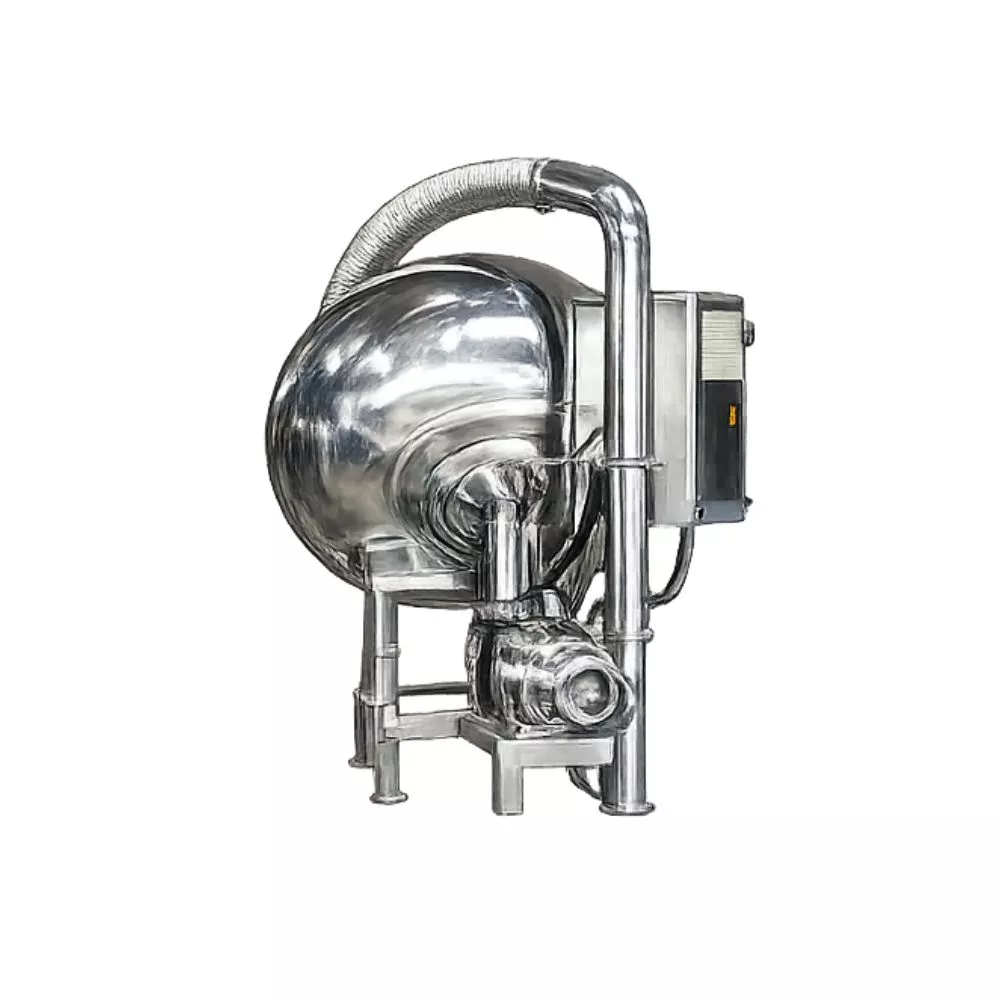

The Coating Pan Machine from TRADE SBE is designed for coating nuts, seeds, confectionery products and other suitable food items with sugar syrup, chocolate, seasoning or flavored coatings, depending on the machine configuration. It uses a rotating stainless steel pan to tumble products while coating ingredients are applied evenly across their surfaces. The machine is suitable for confectionery manufacturers, dry fruit processors, snack production units and food processing industries that require consistent coating and finishing.

Product Applications

The Coating Pan Machine is suitable for coating almonds, cashews, peanuts, raisins, seeds, candies, confectionery products and other compatible food items. It can be used in dry fruit processing plants, chocolate and confectionery factories, snack manufacturing units and commercial food production facilities. Depending on the product and configuration, the machine can support sugar coating, chocolate coating, flavored coating and seasoning applications for retail and wholesale food products.

Key Benefits

Uniform Coating: Helps distribute coating ingredients across product surfaces through continuous tumbling.
Versatile Applications: Suitable for nuts, seeds, confectionery and other compatible products.
Stainless Steel Construction: The pictured machine features a stainless steel product-contact pan.
Controlled Operation: Supports adjustment of operating conditions according to the product and coating method.
Improved Product Appearance: Helps create an attractive, consistent finish on coated products.
Commercial Production: Suitable for food processing and confectionery manufacturing operations.
Flexible Configuration: Heating, spraying and other coating features can be selected according to requirements.
Export Support: TRADE SBE provides international machinery supply, export packing, shipping assistance and relevant trade documentation.

Working Operation

Product Loading: Nuts, seeds or confectionery products are loaded into the rotating pan.
Pan Rotation: The motor-driven mechanism rotates the pan, tumbling the products continuously.
Coating Application: Sugar syrup, chocolate, seasoning or another suitable coating is added gradually.
Coating Distribution: The rotating action helps spread the coating over the product surfaces.
Drying or Setting: Depending on the coating material, controlled drying, cooling or setting may be required.
Product Discharge: The finished coated products are removed for cooling, inspection and packaging.

The final coating quality depends on the product type, coating formulation, pan speed, batch size and operating conditions.

Specification	Details
Machine Type	Automatic Coating Pan
Capacity	20–100 kg/batch
Pan Material	Food-Grade Stainless Steel
Contact Parts	SS 304
Pan Rotation	Variable Speed
Drive	Gear Motor
Heating System	Electric / Hot Air / Steam, as required
Coating Method	Spray / Liquid / Syrup / Seasoning Coating
Spray System	Stainless Steel Spray Pipe / Nozzle
Control	Control Panel
Tilting	Adjustable Pan Tilting
Power Supply	220–415 V, 50 Hz
Phase	Single / Three Phase
Construction	Heavy-Duty Stainless Steel
Packing	Export wooden case / seaworthy packing
Maintenance	Low-maintenance design
Country of Origin	India

FAQ

1. What is a Coating Pan Machine used for?
A Coating Pan Machine is used to apply sugar, chocolate, seasoning or other suitable coatings to nuts, seeds and confectionery products.
2. Which products can be processed in a Coating Pan Machine?
Depending on the configuration, it can process almonds, cashews, peanuts, raisins, candies, seeds and other compatible products.
3. Can the machine be used for chocolate coating?
Suitable models can be used for chocolate coating when the required temperature control and coating arrangements are provided.
4. Can the Coating Pan apply sugar coating to nuts?
Yes, compatible models can apply sugar syrup or similar coatings to nuts and confectionery products.
5. Is the machine suitable for commercial production?
Yes, it is suitable for commercial food processing and confectionery operations. The appropriate model depends on the required batch size and production target.
6. Can the Coating Pan Machine be customized?
Customization may be available on request. Contact TRADE SBE with your product type, batch capacity, coating material and heating requirements.
7. Does TRADE SBE export Coating Pan Machines internationally?
Yes, TRADE SBE supports international machinery supply, export packing, shipping coordination and relevant export documentation. FOB and CIF terms can be discussed according to the destination.
8. How can I request a quotation?
Share your product type, required batch capacity, coating method, power supply and destination country with TRADE SBE to request a suitable quotation.
