Egg Turning System

Automatic Egg Turning System

The Egg Turning System is designed to periodically change the position of fertile eggs during the incubation process. Regular and controlled turning helps maintain uniform embryo development and supports effective use of the incubation environment throughout the setting period.

Turning Mechanism

The system uses a mechanical turning arrangement to change the position or angle of egg trays at predetermined intervals. Controlled movement helps provide consistent turning across the complete tray arrangement.

Tray Support System

The tray support assembly securely holds incubation trays while allowing them to tilt or rotate during the turning cycle. Its structure is designed to maintain stable egg positioning throughout the movement.

Drive System

An electric motor or suitable mechanical drive powers the turning mechanism. The drive arrangement provides controlled movement of the trays according to the programmed incubation cycle.

Turning Angle

The turning mechanism can be configured to achieve the required tray inclination or turning angle according to the incubator design and incubation requirements.

Turning Frequency

The system can be programmed or adjusted to perform turning at predetermined intervals during the incubation period. The exact frequency depends on the incubator configuration and incubation program.

Control System

The control system coordinates the turning mechanism with the incubation cycle. Automated operation helps maintain consistent turning without requiring continuous manual intervention.

Working Principle

Fertile eggs are placed in incubation trays supported by the turning mechanism. At predetermined intervals, the drive system changes the position of the trays, causing the eggs to change orientation.

The controlled turning process is repeated throughout the required setting period. Near the end of incubation, turning is stopped according to the hatchery program before the eggs are transferred to the hatching stage.

Main Applications

• Commercial poultry hatcheries

• Setter incubators

• Broiler chick production

• Layer chick production

• Breeder hatcheries

• Poultry breeding facilities

• Large-scale incubation systems

• Automated hatchery operations

Key Features

• Automatic egg turning

• Controlled tray movement

• Consistent egg positioning

• Motor-driven operation

• Adjustable turning cycle

• Compatible with incubation trays

• Reduced manual intervention

• Suitable for commercial hatcheries

• Integration with setter incubators

• Supports uniform incubation management

Construction Details

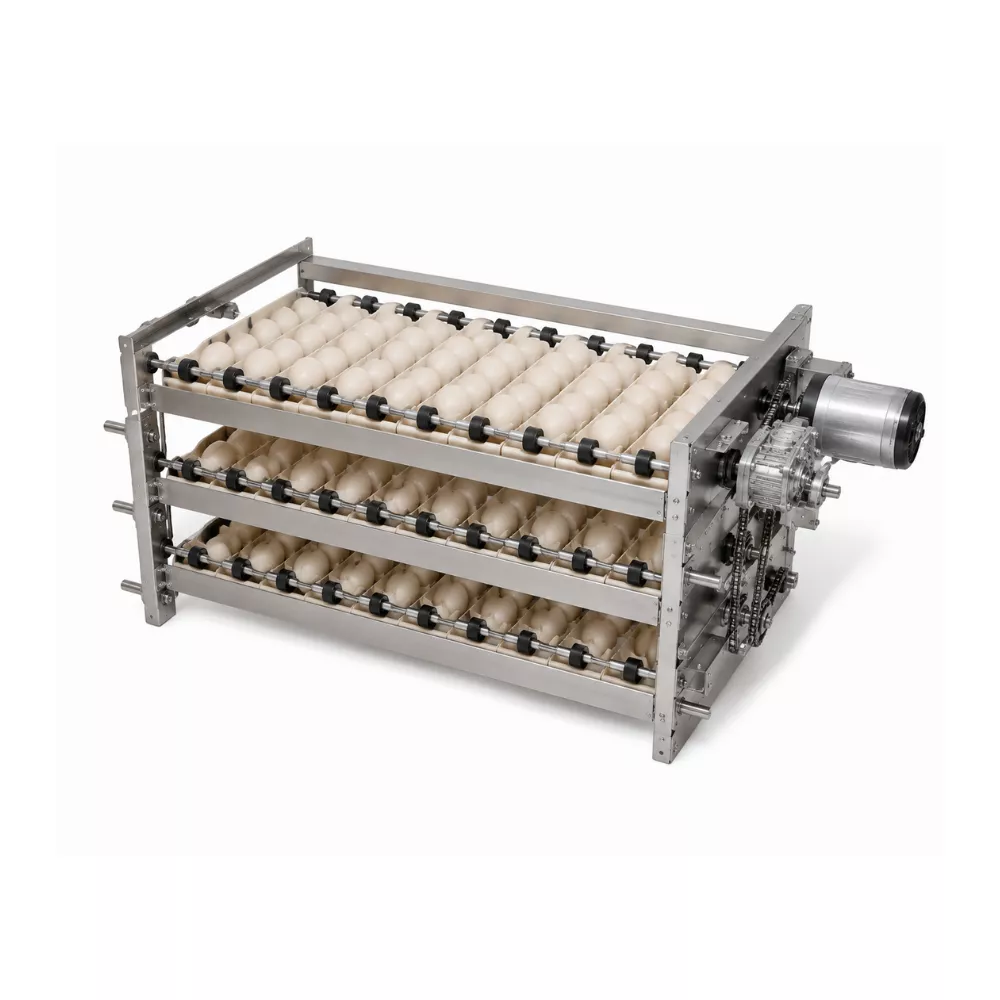

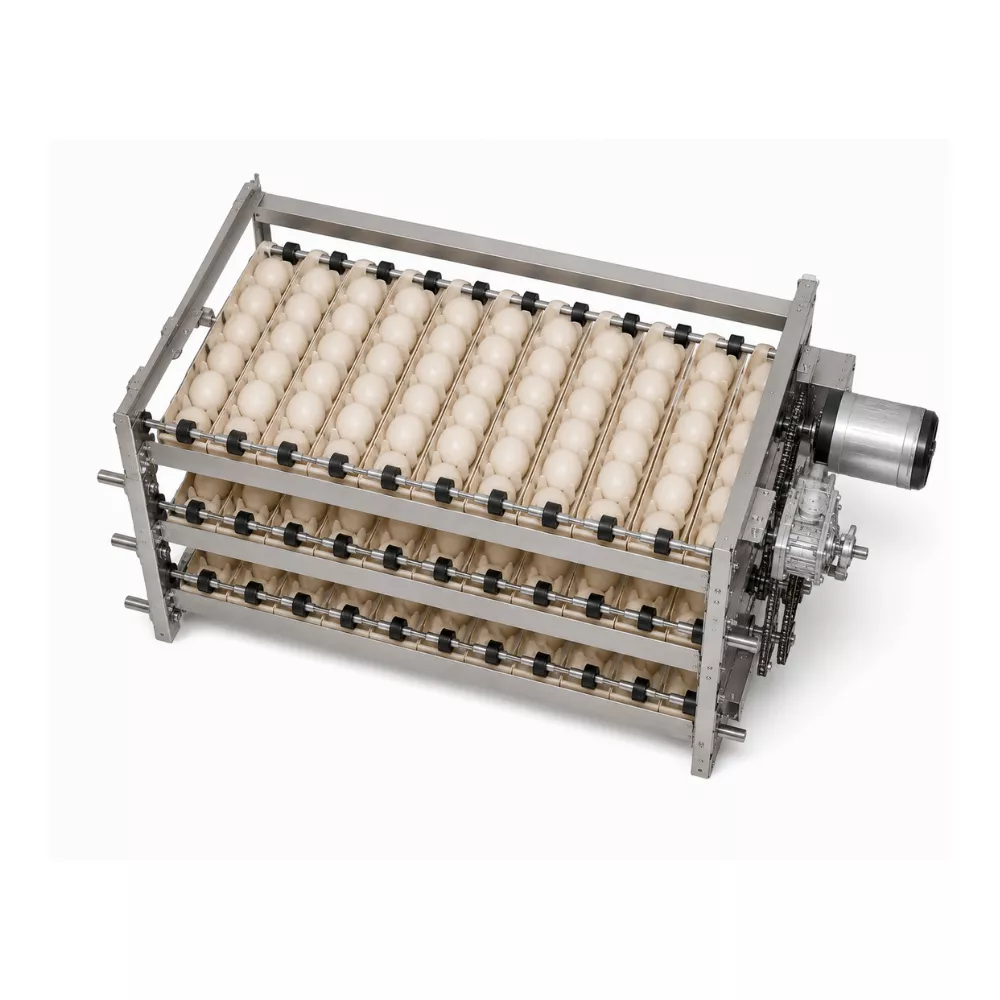

The Egg Turning System consists of a tray-support arrangement, mechanical turning mechanism, drive assembly and control components. The trays are mounted in a manner that allows controlled tilting or movement while keeping the eggs securely positioned.

The system can be integrated directly into setter incubators and connected with automated control systems for coordinated operation throughout the incubation cycle.

Maintenance Requirements

• Inspect the turning mechanism regularly for smooth movement.

• Check tray supports and mounting points for looseness.

• Inspect the drive motor and mechanical components.

• Check shafts, bearings and linkages for wear.

• Ensure incubation trays remain properly positioned.

• Inspect electrical connections and control components.

• Lubricate applicable mechanical components according to manufacturer recommendations.

• Test the complete turning cycle before starting a new incubation batch.

Safety Features

The turning mechanism should be properly guarded to prevent access to moving mechanical components during operation. Secure tray mounting, stable mechanical connections and protected electrical components should be maintained. Appropriate emergency-stop and overload-protection arrangements should be provided according to the incubator configuration.
