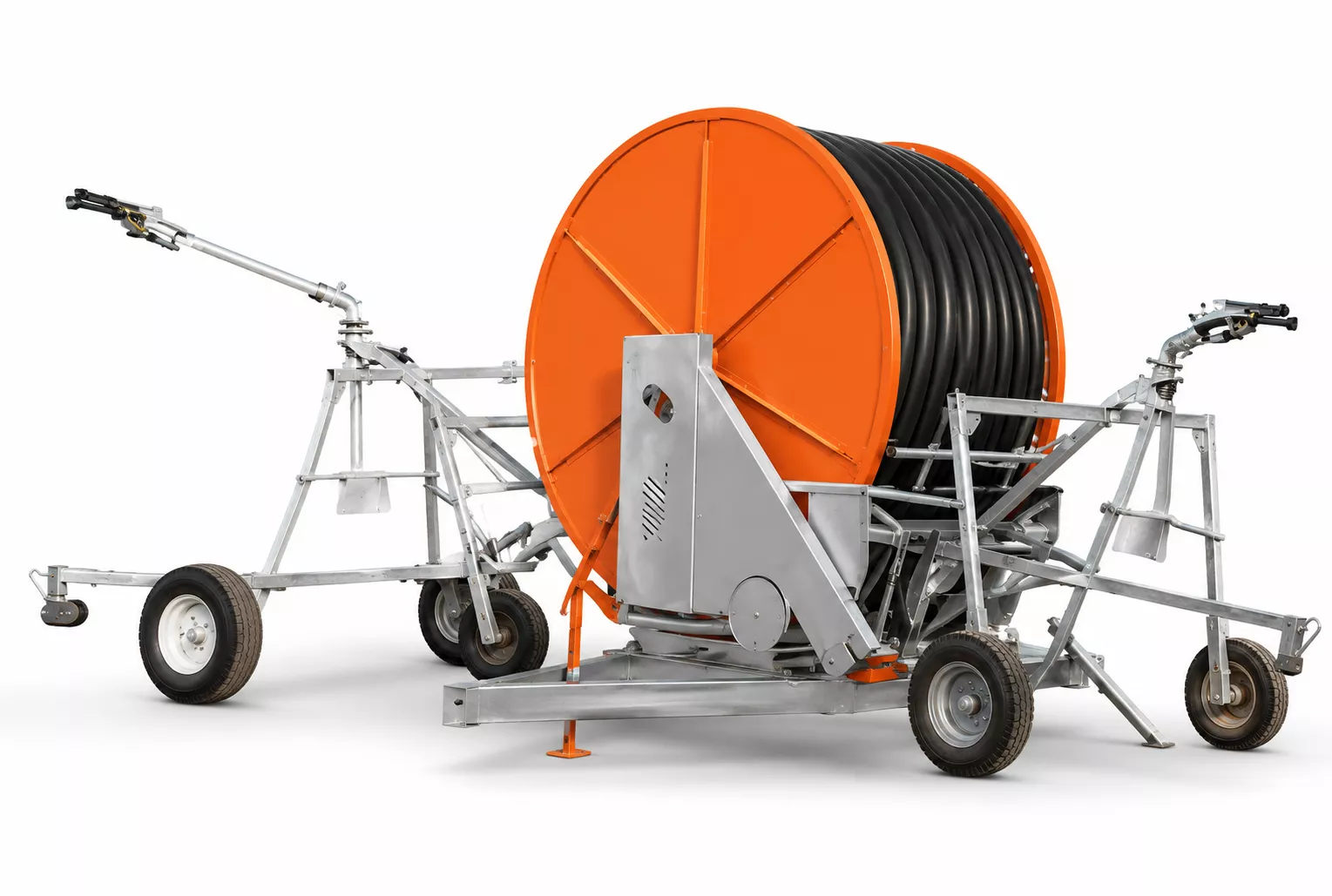

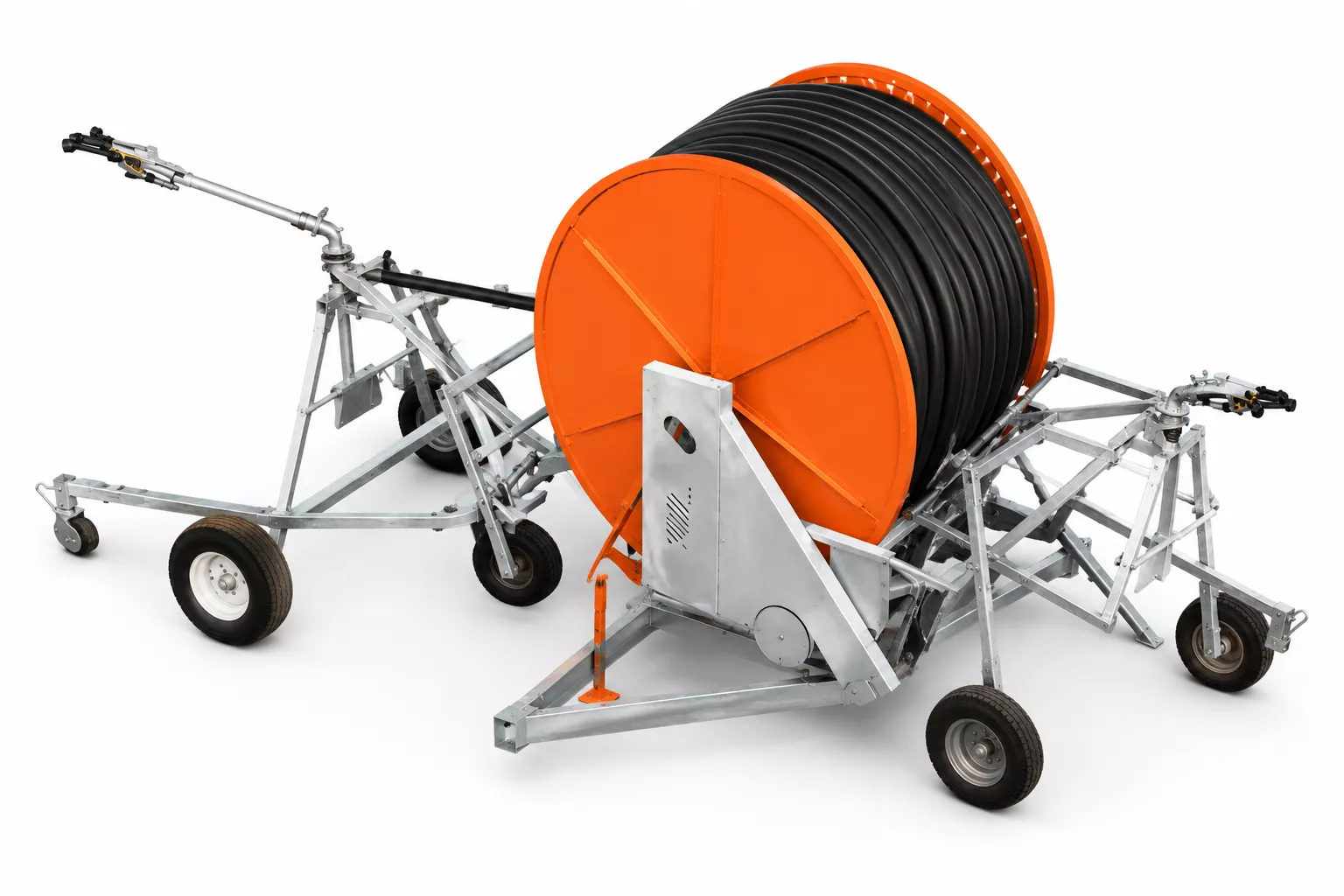

Hose Reel Irrigation Machine

Applications of Hose Reel Irrigation Machine

Large Agricultural Fields

Farmers use hose reel irrigation systems to water large fields in planned irrigation strips. The travelling sprinkler distributes water while moving along the designated path.

Wheat and Cereal Crop Irrigation

Suitable hose reel systems can irrigate wheat, maize and other cereal crops. The sprinkler arrangement and application rate should match the crop and field conditions.

Fodder and Pasture Irrigation

The machine can distribute water across grass fields, fodder crops and pasture areas. Its travelling operation helps cover different sections of the agricultural land.

Vegetable Cultivation

Depending on sprinkler selection and water application requirements, hose reel systems can support irrigation for vegetables and other field-grown crops.

Orchards and Plantations

Some configurations can be used in suitable plantation areas where the field layout allows the travelling trolley and sprinkler to operate safely.

Irregular Field Areas

The movable design can provide irrigation flexibility in fields where installing permanent pipelines throughout the area may be difficult. The travel lanes and sprinkler coverage must be planned according to the land layout.

Key Features and Benefits of Hose Reel Irrigation Machine

Retractable Irrigation Hose

The flexible hose winds onto the reel after irrigation travel. This arrangement helps manage the hose and prepare the machine for its next operating position.

Travelling Sprinkler System

A sprinkler gun or spray boom mounted on a trolley distributes water while moving through the field. The distribution equipment depends on the machine configuration.

Automatic Hose Retraction

Many models use a turbine, hydraulic mechanism or auxiliary drive to wind the hose gradually. The retraction mechanism controls the travelling movement of the sprinkler trolley.

Flexible Field Coverage

The machine can irrigate different field strips by repositioning the reel and extending the hose along another travel lane.

Reduced Permanent Pipeline Requirements

The movable arrangement can reduce the need for fixed irrigation distribution lines throughout the field. A suitable water source and supply connection are still required.

Adjustable Irrigation Travel Speed

The hose retraction speed influences how much water is applied along the travel path. Suitable speed adjustment helps manage irrigation depth according to crop and soil requirements.

Different Sprinkler Configurations

Depending on the model, the system may use a large gun sprinkler or a spray boom. This provides flexibility for different field conditions and water distribution requirements.

How Does a Hose Reel Irrigation Machine Work?

A hose reel irrigation machine works by combining pressurised water delivery with a controlled hose-retraction mechanism.

First, the machine is positioned at the selected location, and its stabilising supports are secured. The flexible irrigation hose is then extended across the field and connected to the travelling sprinkler trolley. The machine is connected to a suitable water supply and pumping arrangement.

When water flows through the system, the sprinkler gun or spray boom distributes water over the crop area. At the same time, a water turbine, hydraulic drive or other winding mechanism rotates the reel. The reel gradually pulls the hose back and moves the sprinkler trolley towards the machine.

The travel speed determines how long the sprinkler applies water to each section of the field. Once the hose has been fully retracted, the irrigation run is completed. The machine can then be repositioned for another field strip.

The exact operating sequence depends on the drive mechanism and sprinkler configuration. <Cite refs={["turn100788search0","turn100788search2","turn100788search12"]}/>

How to Choose the Right Hose Reel Irrigation Machine

Check Field Size and Layout

Measure the field area and identify suitable travel lanes. Consider field shape, crop height, obstacles and the available space for machine movement.

Select Suitable Hose Length and Diameter

Choose hose dimensions according to the required travel distance, water flow and pressure. The hose should be compatible with the reel and sprinkler arrangement.

Evaluate Sprinkler Type

Decide whether a large sprinkler gun or spray boom is more suitable. Consider the crop, desired water distribution pattern and operating pressure.

Check Water Flow and Pressure

Confirm that the available pump can supply the required discharge and pressure. Include pipeline losses and the operating requirements of the sprinkler and reel drive mechanism.

Review the Reel Drive Mechanism

Check whether the machine uses a water turbine, hydraulic system or auxiliary engine. Review travel-speed control and automatic stopping features.

Consider Field Conditions and Maintenance

Evaluate soil conditions, trolley movement, hose durability and access for servicing. Regularly inspect the hose, couplings, sprinkler nozzle, reel drive and trolley wheels.

Frequently Asked Questions About Hose Reel Irrigation Machines

What is a hose reel irrigation machine used for?

It is used to irrigate agricultural fields through a travelling sprinkler system. The machine retracts a flexible hose onto a reel while pulling the sprinkler trolley across the field.

How does a hose reel irrigation system move?

A winding mechanism, commonly powered by a water turbine, hydraulic drive or auxiliary engine, rotates the reel and gradually retracts the hose. This movement pulls the sprinkler trolley towards the machine.

Which sprinkler is used in a hose reel irrigation machine?

Depending on the model, it can use a large gun-type sprinkler or a spray boom equipped with multiple nozzles.

Does a hose reel irrigation machine require a water pump?

Yes, it needs a suitable pressurised water supply. A pump is generally used to provide the required flow and pressure for the sprinkler and reel operating mechanism.

What factors affect irrigation performance?

Water pressure, discharge rate, sprinkler nozzle size, wind conditions, hose retraction speed and field layout all influence water distribution.
