Poultry Manure Separator

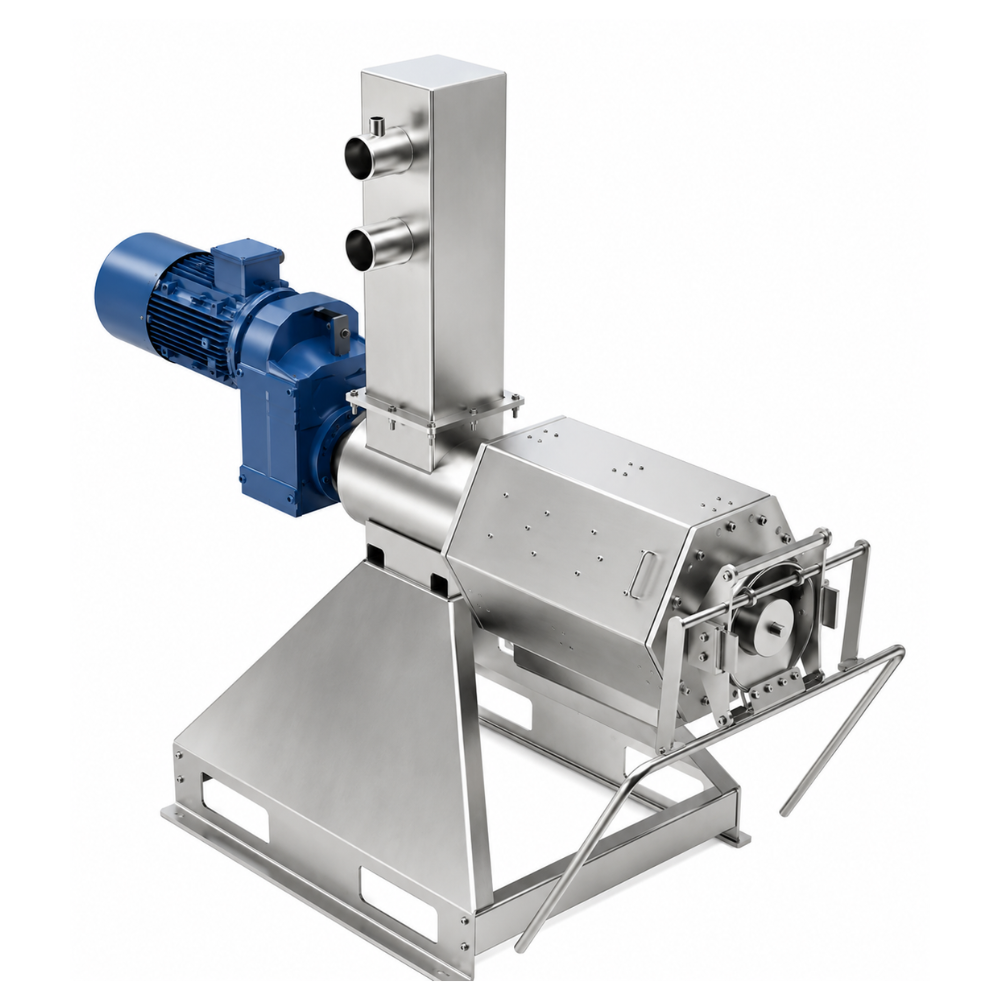

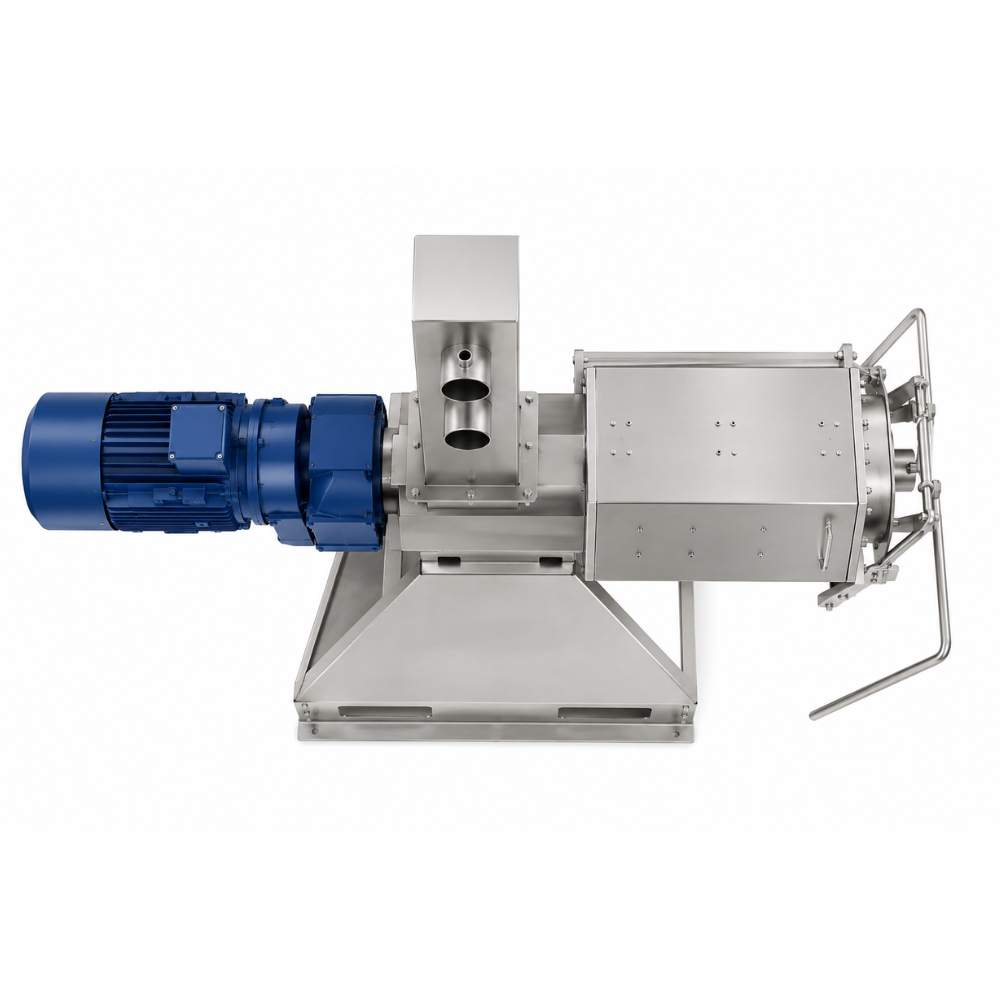

The Manure Separator is designed to separate solid and liquid fractions from poultry manure or other livestock waste streams. It helps reduce the moisture content of collected manure and produces a more manageable solid fraction for storage, composting, drying or organic fertilizer applications.

Manure Feeding System

The feeding section receives manure from a collection conveyor, pump or waste-transfer system and directs it into the separation chamber at a controlled rate.

Separation Chamber

The separation chamber contains the main mechanism responsible for separating solid material from liquid. The design can vary according to the type of separator and the characteristics of the manure being processed.

Screw Separation System

A screw conveyor or auger mechanism can transport the manure through the separation section while applying mechanical pressure to separate the liquid fraction from the solids.

Solid Discharge System

The separated solid manure is transferred toward the discharge outlet for collection, drying, composting or further processing. Controlled discharge helps maintain continuous operation.

Liquid Discharge System

The liquid fraction is directed through a separate outlet toward a collection tank, treatment system or other appropriate waste-management arrangement.

Drive Motor

An electric motor powers the separation mechanism and provides the mechanical movement required for continuous manure processing. The motor configuration depends on the selected machine model.

Pressure / Adjustment System

An adjustable pressure or compression arrangement can be used to control the degree of separation. The adjustment depends on manure consistency and the desired characteristics of the separated solid material.

Working Principle

Collected poultry manure enters the separator through the feeding section and moves into the separation chamber. The mechanical separation mechanism transports the material while allowing liquid to be extracted from the solid portion.

The separated liquid exits through the designated liquid outlet, while the relatively drier solid fraction is conveyed toward the solid discharge outlet. The separated material can then be transferred for drying, composting, storage or fertilizer processing.

Main Applications

• Poultry farms

• Layer farms

• Broiler farms

• Poultry manure processing facilities

• Organic fertilizer production

• Composting operations

• Livestock waste-management systems

• Manure drying and recycling facilities

Key Features

• Solid-liquid manure separation

• Continuous manure processing

• Mechanical separation mechanism

• Separate solid discharge

• Separate liquid discharge

• Adjustable separation operation

• Motor-driven operation

• Integration with manure conveyors

• Suitable for further manure drying

• Supports organized waste management

Construction Details

The Manure Separator consists of a manure inlet, separation chamber, mechanical separation mechanism, drive motor, solid discharge outlet and liquid discharge arrangement. Depending on the configuration, it may also include adjustable pressure components, screens or filtration sections.

The machine can be connected with manure conveyors, collection tanks, manure dryers and fertilizer-processing equipment to create a complete poultry-waste management system.

Maintenance Requirements

• Clean the separation chamber after regular operating cycles.

• Remove accumulated manure from the inlet and discharge areas.

• Inspect the screw, screen or separation mechanism for wear.

• Check the drive motor and transmission components.

• Inspect solid and liquid discharge outlets for blockage.

• Check seals, bearings and mechanical connections.

• Maintain proper adjustment of the pressure system where applicable.

• Lubricate applicable moving components according to manufacturer recommendations.

• Inspect electrical connections during routine servicing.

Safety Features

The separator should incorporate suitable guarding around the motor, screw mechanism and other moving components. Secure inlet and outlet connections should be maintained to prevent leakage or uncontrolled material discharge. The machine should be switched off and isolated from the power supply before cleaning, blockage removal or maintenance work.
