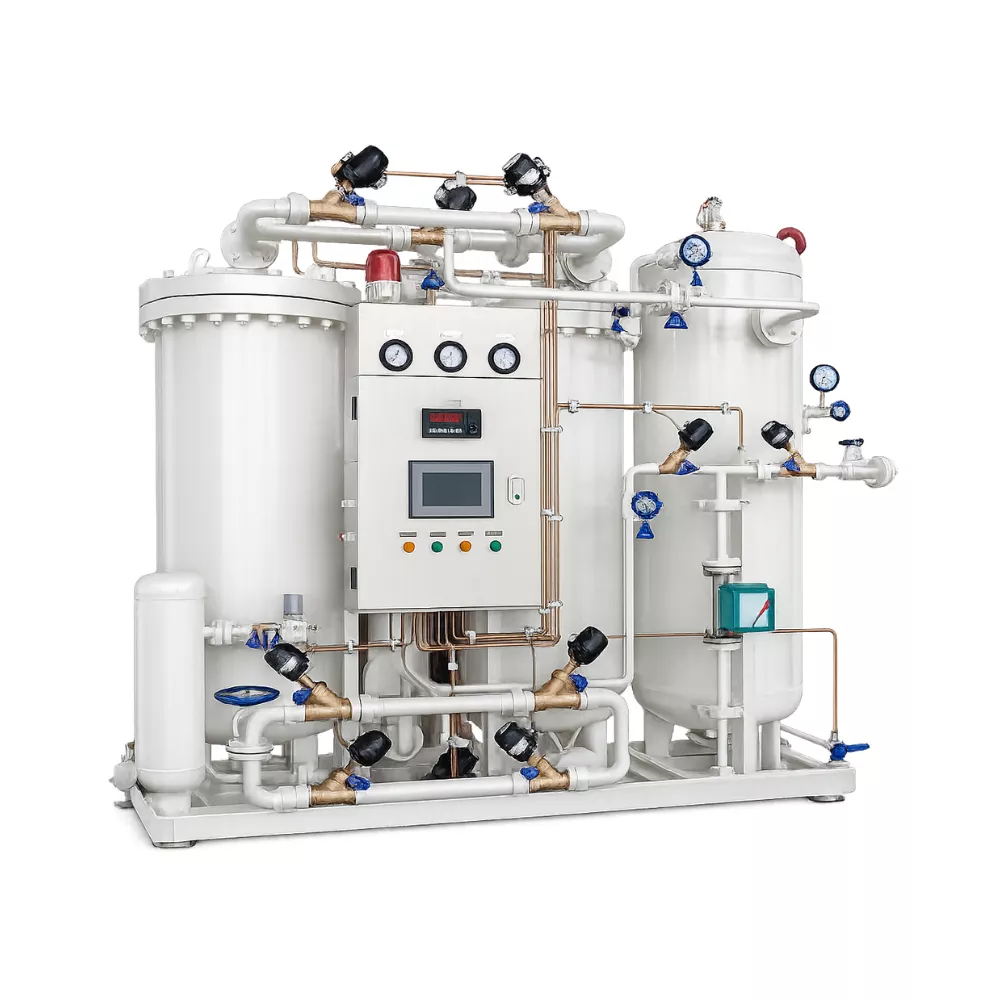

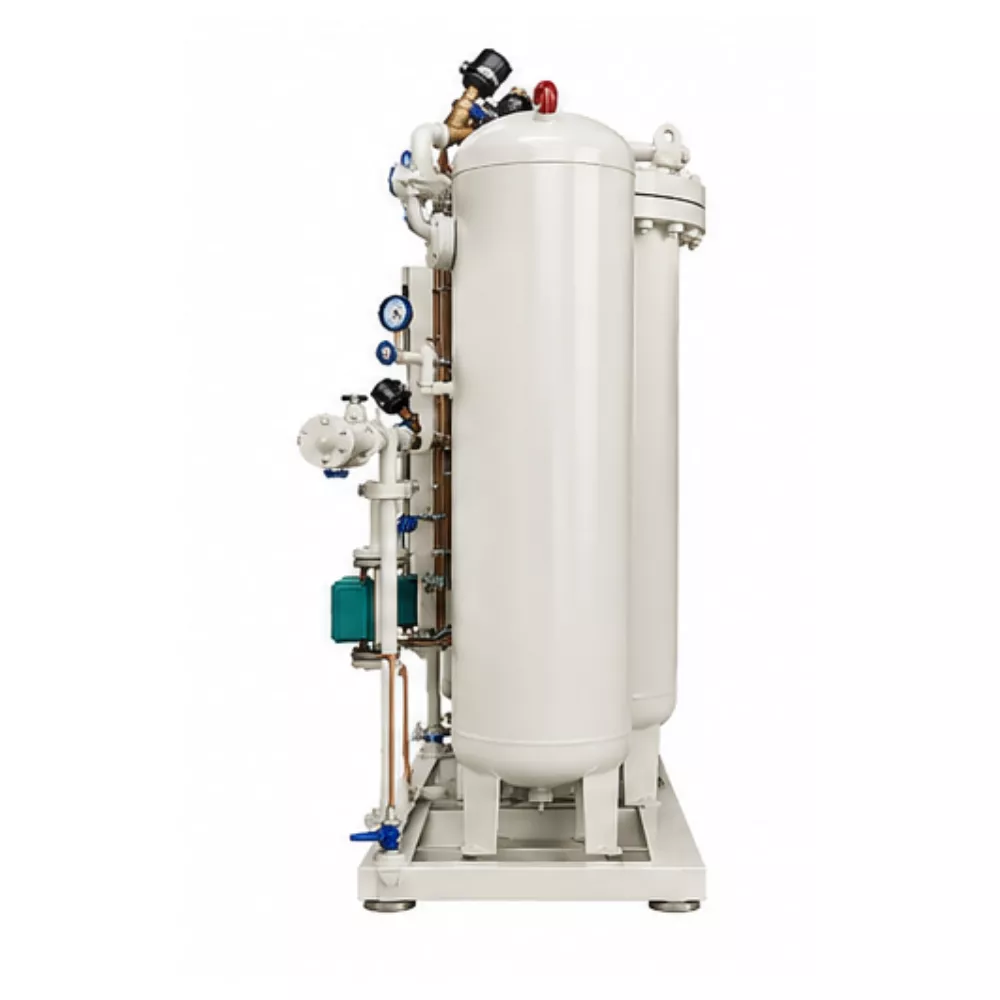

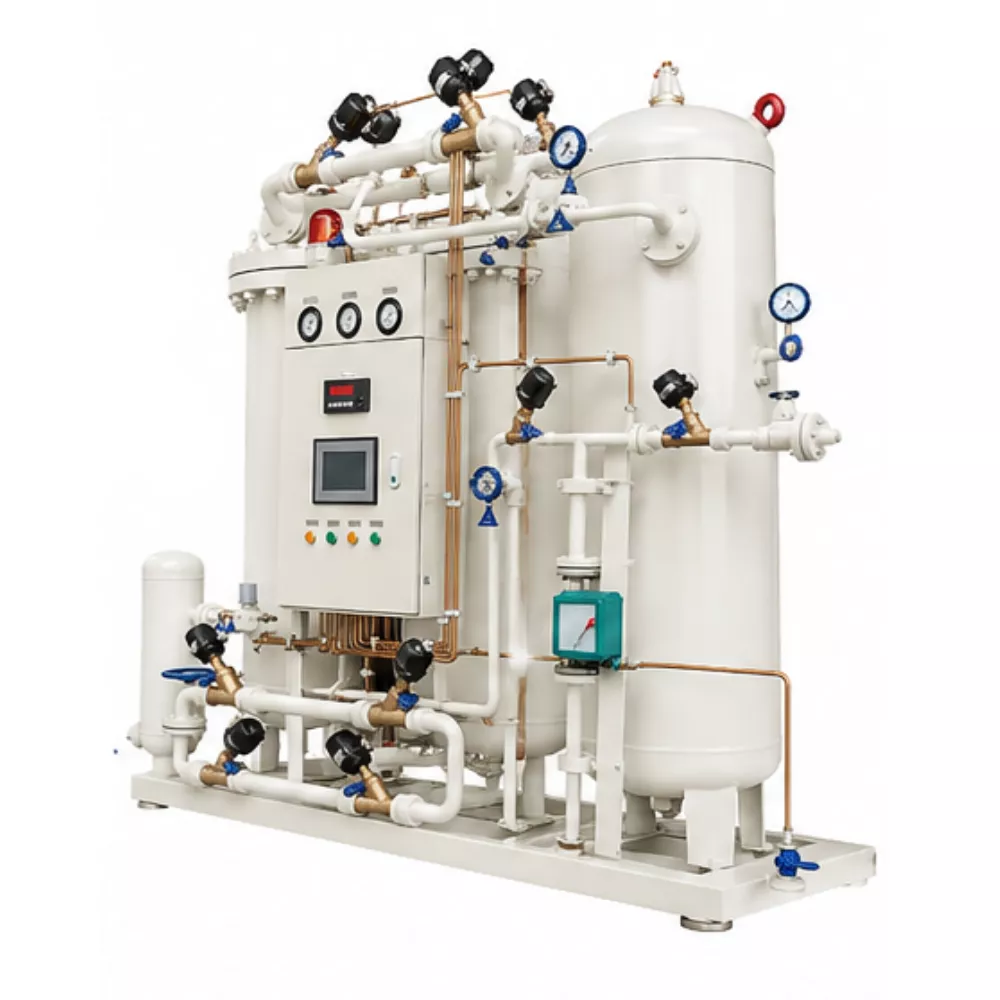

Nitrogen Generator

Nitrogen Generator

A Nitrogen Generator is an industrial system that produces nitrogen gas from compressed air, reducing the need for regular nitrogen cylinder deliveries. It commonly uses Pressure Swing Adsorption (PSA) or membrane technology to separate nitrogen from other gases in the air. TRADE SBE supplies nitrogen generation systems with customizable gas purity, flow rates and operating configurations.

Product Applications

Nitrogen generators are widely used in food packaging plants, pharmaceutical facilities, chemical industries, electronics manufacturing, laboratories and metal processing units. They provide nitrogen for modified atmosphere packaging (MAP), product preservation, inerting, purging and other applications requiring a controlled nitrogen supply. The required purity and flow rate depend on the application and process specifications.

Key Benefits

Produces nitrogen on-site as required.
Reduces dependence on delivered nitrogen cylinders.
Available with PSA or membrane technology.
Adjustable nitrogen purity and output capacity, depending on the model.
Supports continuous industrial operations.
Customizable system configurations and automation options.

Working Operation

Compressed air passes through pretreatment filters and a drying system to remove moisture, oil and particles. In a PSA nitrogen generator, compressed air enters adsorption vessels containing carbon molecular sieve, which preferentially retains oxygen and allows nitrogen-rich gas to pass through. The system switches between vessels to maintain production and regenerate the adsorbent. The nitrogen is then collected in a storage tank and supplied to the application at the required pressure.

Specification	Details
Machine Type	PSA Nitrogen Generator
Nitrogen Purity	95%–99.999%
Nitrogen Capacity	Customized as per requirement
Working Principle	Pressure Swing Adsorption (PSA)
Adsorbent	Carbon Molecular Sieve (CMS)
Feed Gas	Compressed Air
Operating Pressure	5–10 Bar (application dependent)
Nitrogen Outlet Pressure	Up to 8 Bar (customizable)
Air Receiver Tank	Available
Nitrogen Receiver Tank	Available
Control System	PLC / HMI Automatic Control
Valves	Automatic Pneumatic Valves
Power Supply	3 Phase, 415 V, 50 Hz
Frame	Heavy-Duty Skid-Mounted Structure
Installation	Indoor / Outdoor with suitable protection
Maintenance	Low-maintenance design
Country of Origin	india

FAQ

1. What is a nitrogen generator used for?
It produces nitrogen gas for food packaging, industrial processes, inerting, purging and other applications.
2. Which technologies are used in nitrogen generators?
The most common technologies are Pressure Swing Adsorption (PSA) and membrane separation.
3. Can nitrogen purity be customized?
Yes, achievable purity depends on the technology, model and required flow rate.
4. Is a nitrogen generator suitable for food packaging?
Yes, it can supply nitrogen for food packaging applications when the system meets the required food-grade gas quality specifications.
5. Can I customize the nitrogen generator capacity?
Yes, TRADE SBE can help source a suitable system based on nitrogen purity, flow rate, operating pressure and application requirements.
