Cooling Tunnel Machine | Food & Confectionery Cooling

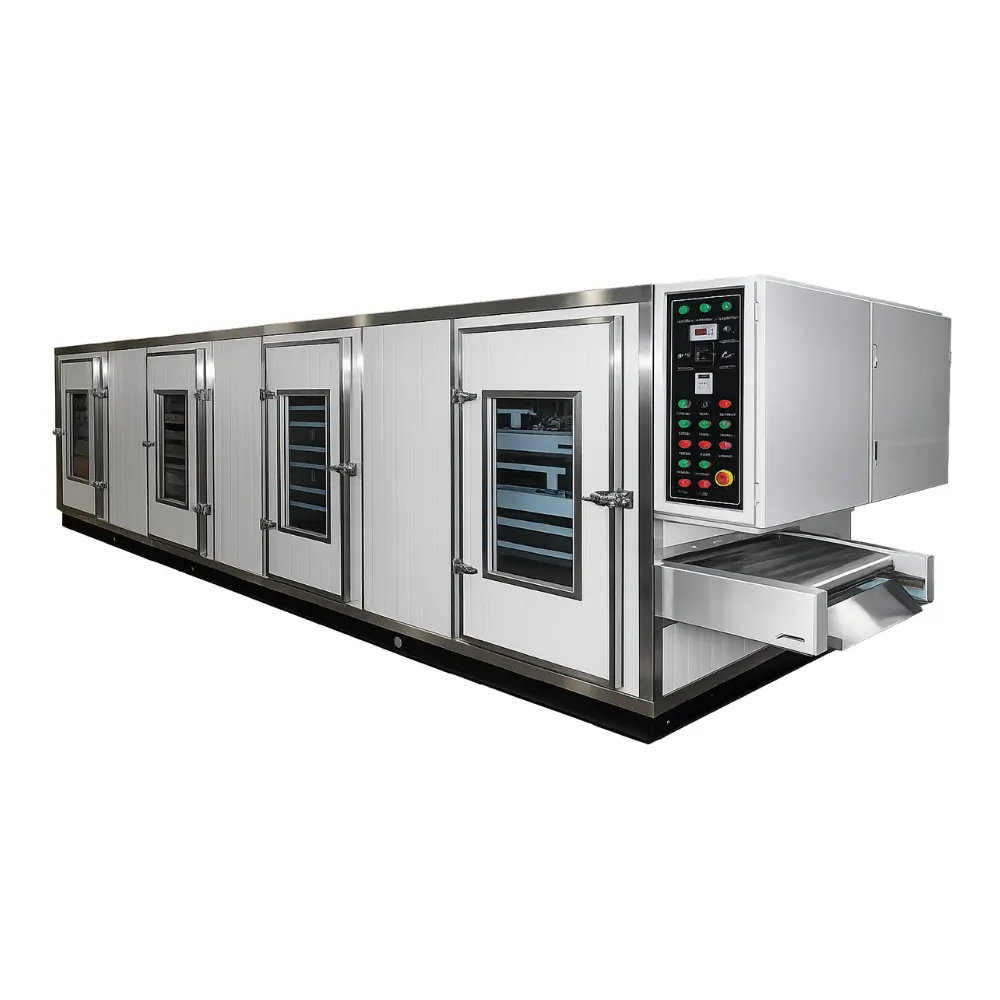

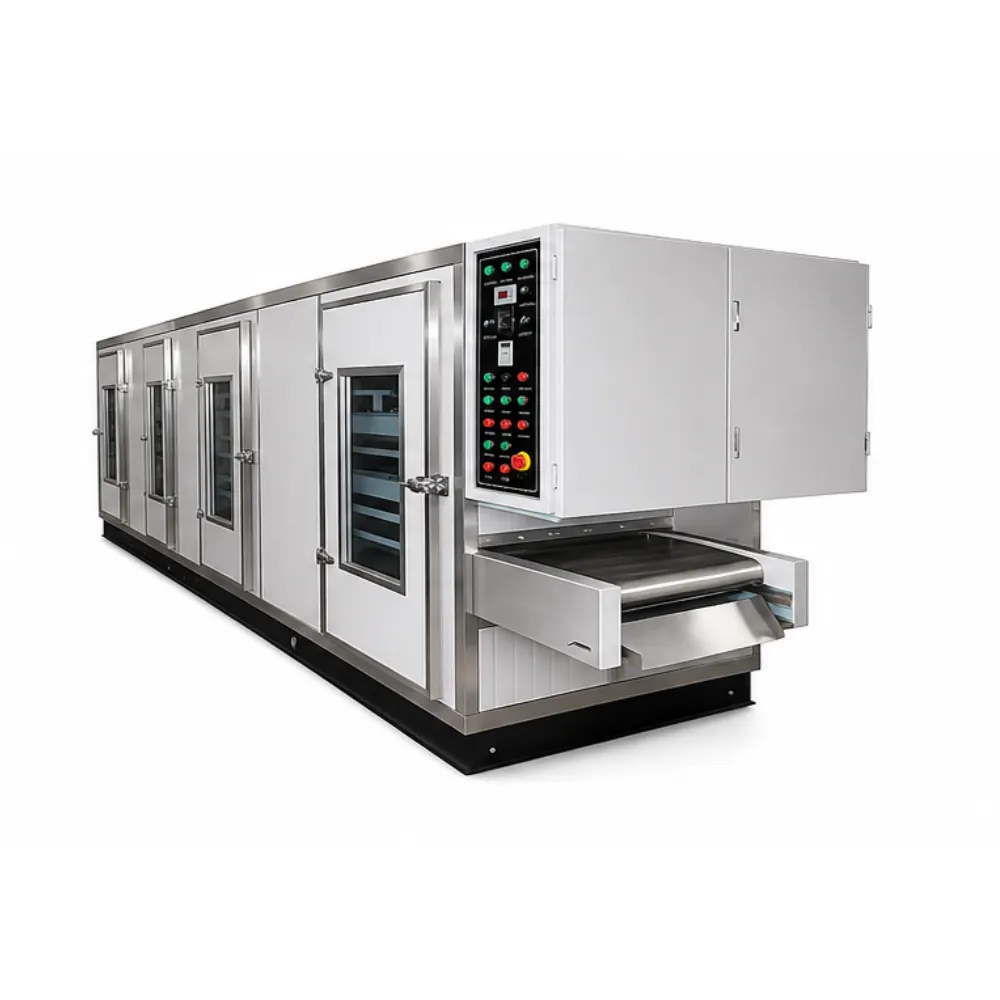

Cooling Tunnel

The Cooling Tunnel is an industrial cooling system designed to rapidly and uniformly cool food and confectionery products after cooking, baking, coating or molding. It uses controlled cold air circulation to reduce product temperature and stabilize texture before further processing, handling or packaging. The system can be customized according to product type, cooling capacity, conveyor length and production speed.

Operation

The product enters the Cooling Tunnel through a continuous conveyor and passes through controlled cooling zones. Refrigerated or chilled air is circulated over and around the products using high-efficiency fans to remove heat evenly. Temperature and airflow can be controlled according to the product requirements. As the product travels through the tunnel, its temperature gradually decreases until the required cooling level is achieved. The cooled product then exits the tunnel for coating, inspection, wrapping or packaging.

Product Applications

The Cooling Tunnel is widely used in confectionery, bakery and food-processing industries for cooling gummy candies, jelly candies, chocolate-coated products, biscuits, cakes, baked products, snacks, coated confectionery, molded products and other heat-sensitive food items. It is suitable for production lines where controlled and continuous cooling is required before packaging or subsequent processing.

Key Benefits

The Cooling Tunnel provides uniform and controlled product cooling, continuous operation, improved production efficiency and reduced manual handling. Controlled airflow and temperature help maintain product quality, shape and texture while reducing the risk of deformation during handling and packaging. Its continuous conveyor design allows easy integration with upstream and downstream production equipment, while the tunnel length, cooling zones, conveyor speed and temperature can be customized according to production requirements.

Specification	Details
Machine Type	Industrial Cooling Tunnel
Cooling System	Forced-Air Cooling
Application	Cooling of Chocolates, Confectionery, Bakery Products & Snacks
Body Material	Food-Grade Stainless Steel
Conveyor Type	Food-Grade PU / SS Conveyor
Temperature Control	Digital Temperature Controller
Cooling Temperature	Approx. 5–20°C*
Cooling Zone	Multi-Zone Cooling
Operation	Automatic Continuous
Control System	Electrical Control Panel
Air Circulation	High-Efficiency Blower System
Temperature Control	Digital Temperature Controller
Power Supply	415 V, 3 Phase, 50 Hz
Suitable For	Chocolate, Candy, Barfi, Coated Products & Bakery Items
Cleaning	Easy-to-clean product-contact components
Maintenance	Low-maintenance design
Country of Origin	india

FAQ

1. What is a Cooling Tunnel used for?
It is used to continuously cool food and confectionery products to the required temperature before further processing or packaging.

2. Which products can be cooled?
It can be used for gummies, jelly candies, chocolates, biscuits, bakery products, snacks, coated products and other suitable food products.

3. How does the Cooling Tunnel work?
Products travel on a conveyor through controlled cooling zones where circulating cold air removes heat and reduces product temperature.

4. Can cooling temperature be controlled?
Yes. Cooling temperature and airflow can be configured according to the product and production requirements.

5. Can the conveyor speed be adjusted?
Yes. Conveyor speed can be adjusted to achieve the required cooling time and production rate.

6. Can the Cooling Tunnel be customized?
Yes. Tunnel length, conveyor width, cooling capacity, number of cooling zones and other specifications can be customized.

7. Can it be integrated with an existing production line?
Yes. The Cooling Tunnel can be designed for integration with depositing, molding, coating, packaging and other production equipment.

8. Does SBE Trade provide export support?
Yes. SBE Trade supplies and exports food-processing machinery worldwide with secure export packing, complete documentation, installation/commissioning support and FOB/CIF shipping options.
