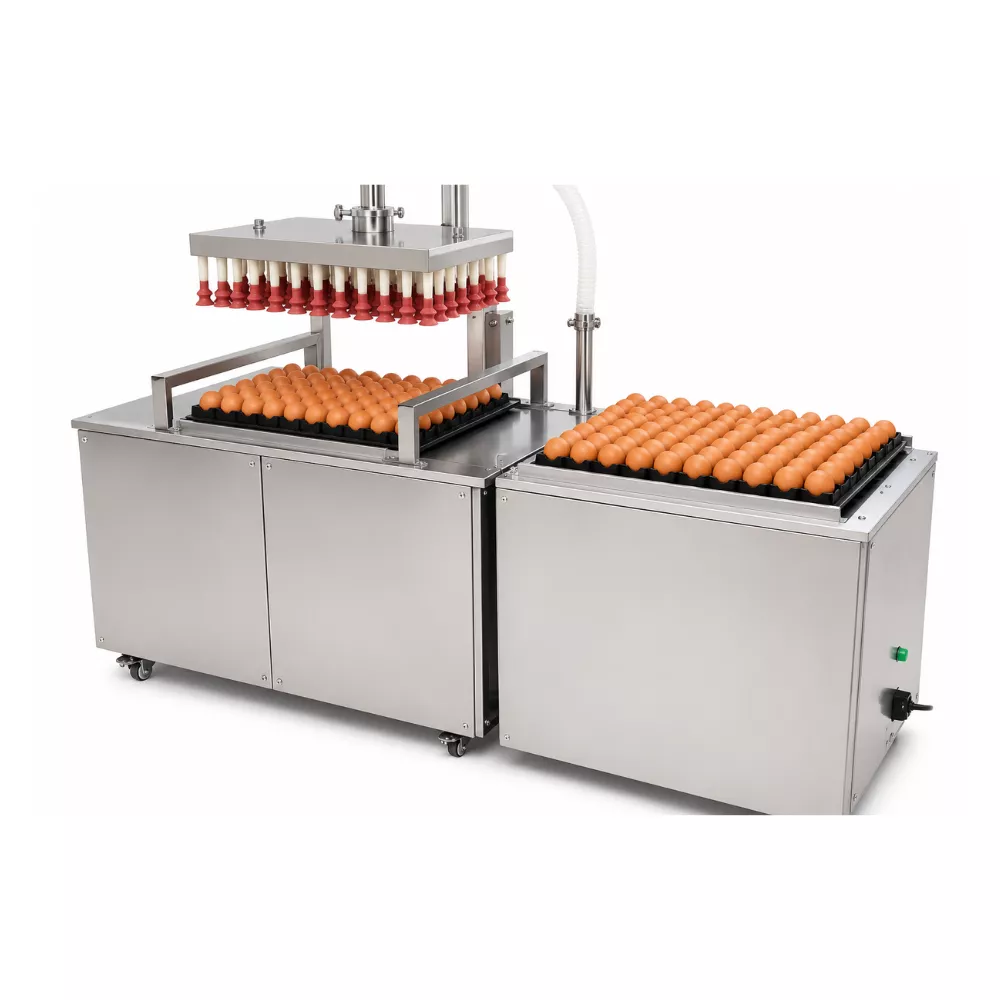

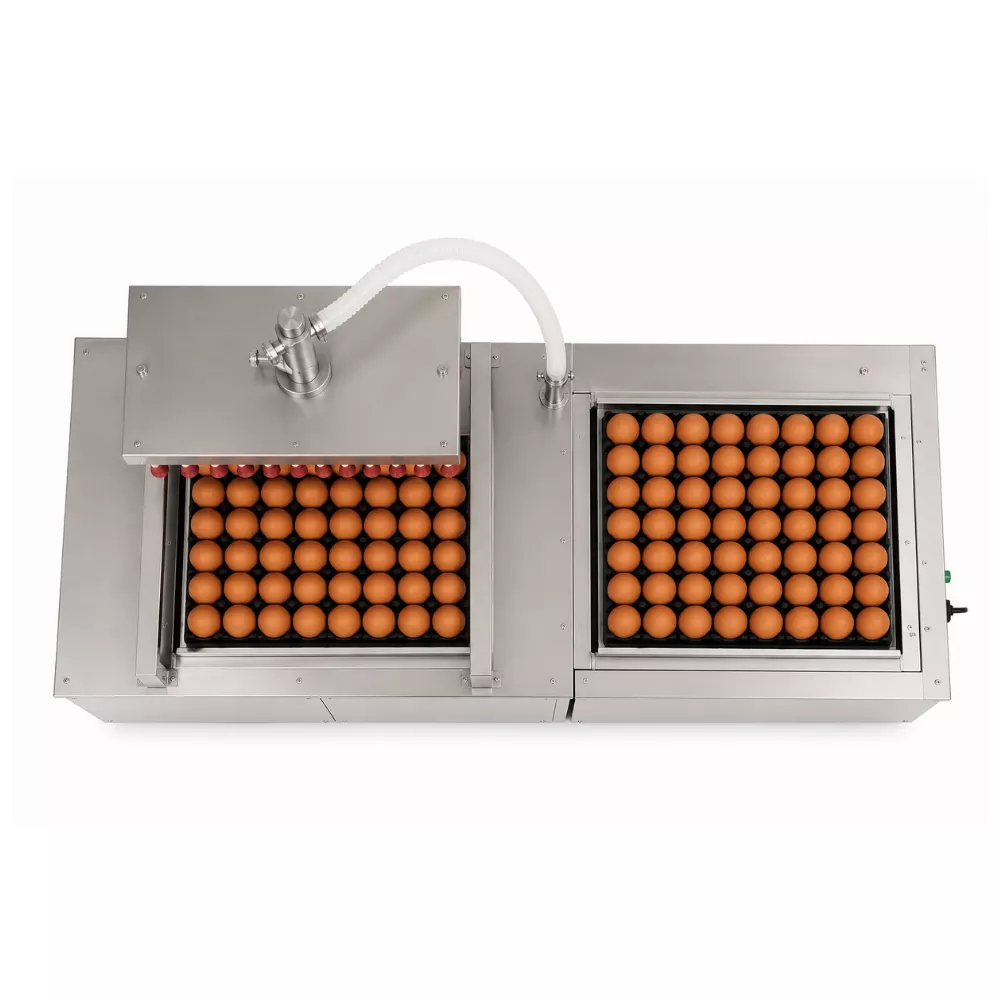

Egg Candling Machine

Automatic Egg Candling Machine

The Egg Candling Machine is designed to inspect eggs by using controlled illumination to identify internal and shell-related characteristics. It helps operators examine egg quality, detect visible abnormalities and separate eggs that require further inspection before grading or packing.

Egg Feeding System

The feeding section receives eggs from the collection or conveyor system and guides them into the candling area. A controlled arrangement helps maintain smooth and consistent egg movement during inspection.

Candling System

The candling unit uses a focused light source to illuminate the egg from behind or beneath the shell. This makes internal features more visible and assists with quality inspection during processing.

Inspection Chamber

The inspection section provides a controlled viewing area where illuminated eggs can be examined. Its enclosed arrangement helps reduce external light interference and improves visibility during the candling process.

Egg Transfer System

A conveyor or roller arrangement moves eggs through the inspection area at a controlled speed. Proper handling helps maintain consistent positioning during the candling operation.

Quality Inspection

Candling can assist in identifying visible internal conditions such as cracks, blood spots, abnormal contents, air-cell irregularities and other quality concerns, depending on the lighting system and inspection method.

Sorting Arrangement

After inspection, eggs can be directed toward separate collection points according to their inspection results. The sorting arrangement can be manual or integrated with automated egg-processing equipment.

Working Principle

Eggs enter the machine through the feeding section and move into the candling area. A controlled light source illuminates each egg, allowing internal characteristics and shell conditions to be examined.

Eggs requiring further inspection or removal can then be separated, while acceptable eggs continue toward grading, sorting or packing equipment. This process helps improve quality control and reduce manual inspection effort.

Main Applications

• Commercial egg farms

• Egg grading facilities

• Egg packing stations

• Hatchery operations

• Poultry processing facilities

• Egg quality inspection centers

• Large-scale egg production units

• Automated egg-processing lines

Key Features

• Controlled egg illumination

• Internal egg inspection

• Shell-condition checking

• Continuous egg handling

• Quality inspection capability

• Reduced manual inspection

• Integration with egg conveyors

• Suitable for commercial egg-processing lines

• Organized inspection workflow

• Suitable for pre-grading quality control

Construction Details

The Egg Candling Machine consists of an egg-feeding arrangement, controlled lighting system, inspection area and egg-transfer mechanism. The lighting section is positioned to provide effective illumination of the egg shell and internal contents during inspection.

The machine can be integrated with egg conveyors, grading machines, sorting equipment and packing systems to form part of a complete egg-processing line.

Maintenance Requirements

• Clean the inspection and egg-contact surfaces regularly.

• Keep the candling light source and viewing area free from dust.

• Inspect the lighting system for proper operation.

• Check conveyors, rollers and egg-transfer components.

• Remove broken eggs and residues promptly.

• Inspect electrical connections and control components.

• Maintain consistent positioning of eggs through the inspection area.

• Replace worn mechanical or lighting components according to manufacturer recommendations.

Safety Features

The candling system should incorporate protected electrical components and suitable guarding around moving mechanisms. Controlled lighting, secure mounting and properly protected wiring should be maintained during operation. Regular cleaning and inspection help ensure safe, hygienic and reliable egg inspection.
