Egg Conveyor System

Egg Conveyor System

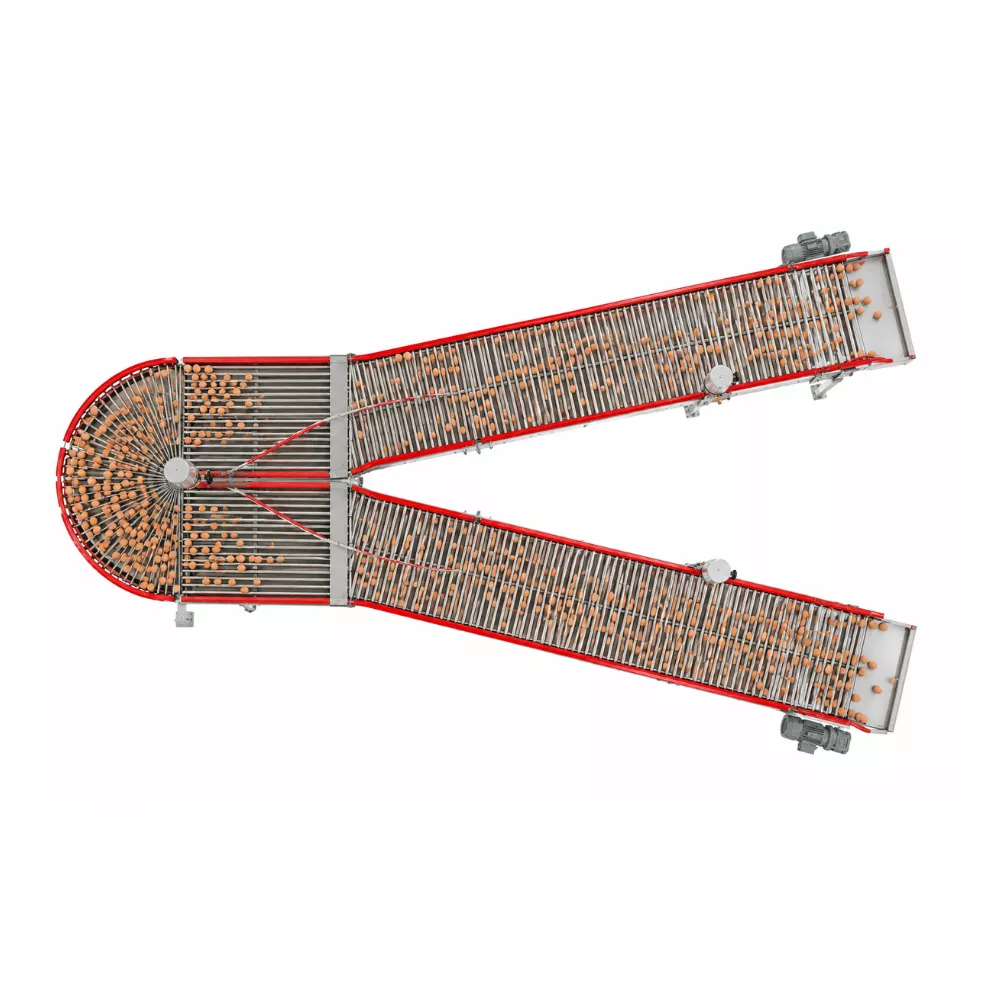

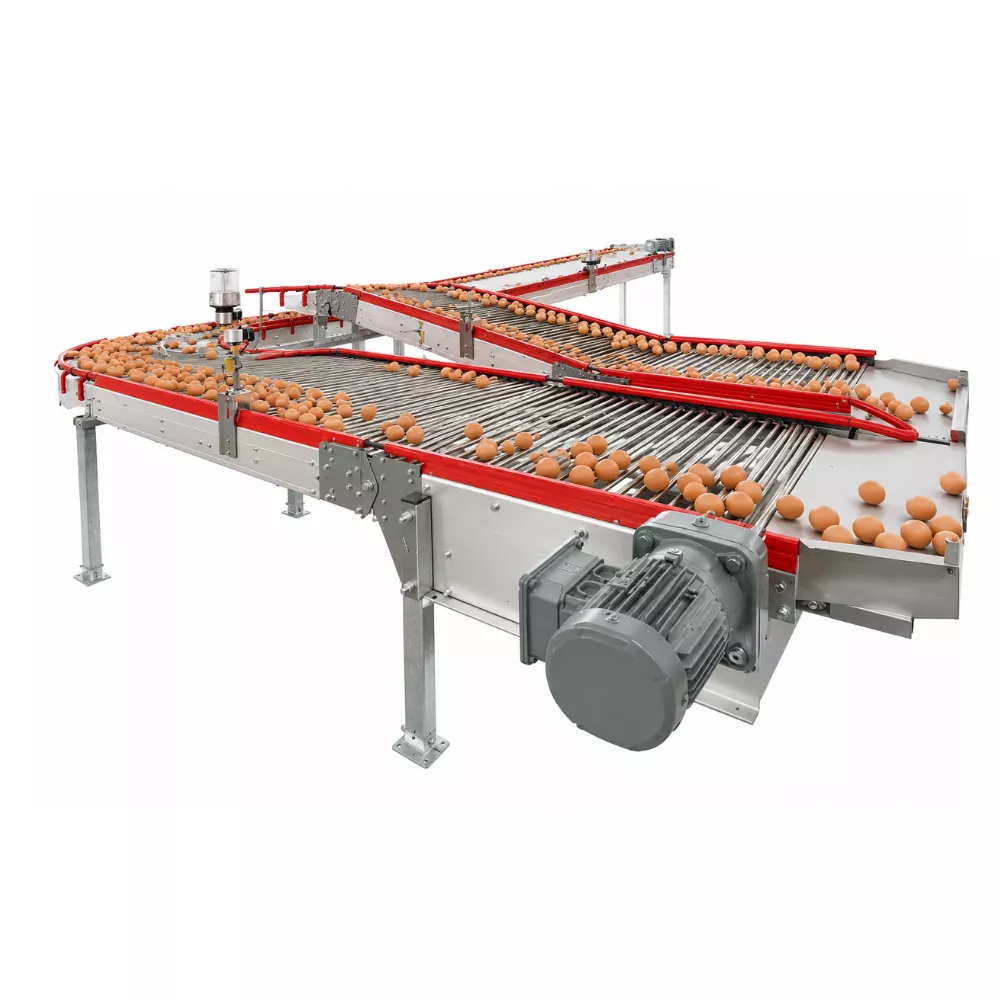

The Egg Conveyor System is designed to transport collected eggs smoothly from poultry cage rows to a centralized collection, grading or packing area. It helps streamline egg handling, reduce manual transportation and support efficient movement of eggs within commercial poultry facilities.

Egg Conveyor Belt

The conveyor belt provides the primary surface for transporting eggs from the collection points toward the designated handling area. Its continuous movement supports an organized and steady flow of eggs.

Egg Receiving Section

The receiving section collects eggs transferred from the cage-level egg collection system. Its arrangement helps guide eggs onto the conveyor while reducing unnecessary manual handling.

Egg Transfer System

The transfer mechanism moves eggs between collection points and the main conveyor line. Proper alignment helps maintain smooth egg movement and reduces the risk of unnecessary impact during transfer.

Drive System

An electric motor powers the conveyor through a mechanical drive arrangement. Controlled belt movement allows eggs to be transported steadily toward the central collection area.

Conveyor Support Structure

The conveyor is supported by a rigid structural framework that maintains the required alignment and stability along its operating length. The support arrangement can be adapted to different poultry-house layouts.

Central Collection

The conveyor transfers eggs from multiple cage rows toward a common collection area. This centralized arrangement simplifies subsequent inspection, grading, sorting and packing operations.

Working Principle

Eggs collected from the cage system are transferred onto the conveyor belt through the receiving section. The motor-driven belt moves the eggs along the conveyor route toward the centralized collection point.

The eggs can then be manually handled or transferred to grading, sorting, packing or other downstream equipment, depending on the complete egg-processing setup.

Main Applications

• Commercial layer farms

• Breeder farms

• Large-scale egg production facilities

• Layer cage systems

• Battery cage systems

• A Type cage systems

• H Type cage systems

• Automated egg-handling facilities

Key Features

• Smooth egg transportation

• Motor-driven conveyor operation

• Centralized egg collection

• Reduced manual egg handling

• Continuous egg movement

• Integration with cage egg-collection systems

• Suitable for multiple cage rows

• Organized transfer to grading and packing areas

• Stable conveyor support structure

• Suitable for commercial egg-production facilities

Construction Details

The Egg Conveyor System consists of a continuous conveying belt supported by a rigid structural framework. The receiving section connects with the cage-level egg collection arrangement, while the discharge end directs eggs toward the centralized collection area.

The conveyor layout can be configured according to the number of cage rows, collection points and available space within the poultry facility.

Maintenance Requirements

• Clean the conveyor belt regularly.

• Remove broken eggs and debris promptly.

• Inspect the belt for wear, damage or misalignment.

• Check rollers, shafts and bearings periodically.

• Inspect the drive motor and transmission components.

• Ensure smooth belt movement throughout the conveyor.

• Check transfer points for proper alignment.

• Inspect structural supports and fasteners.

• Lubricate applicable mechanical components according to manufacturer recommendations.

Safety Features

The conveyor should incorporate suitable guarding around moving drive and mechanical components. Secure belt alignment, stable structural supports and protected electrical connections should be maintained to support safe operation. Regular inspection helps reduce mechanical problems and minimizes the possibility of egg damage during transportation.
