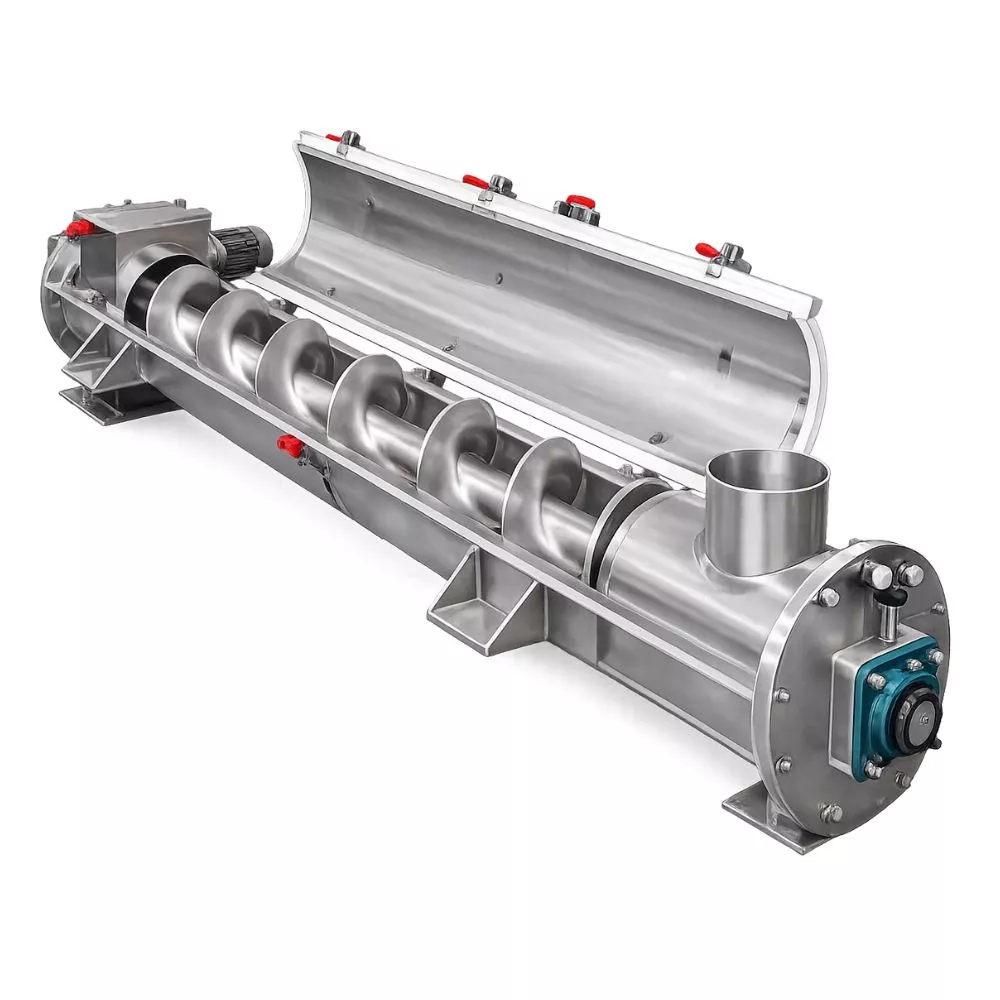

Screw Conveyor
The Screw Conveyor from Trade SBE is designed for efficient horizontal, inclined or controlled conveying of grains, powders and other bulk materials. Its enclosed conveying system provides smooth material transfer while reducing spillage and manual handling.
Product Application
The Screw Conveyor is widely used for conveying paddy, rice, wheat, pulses, flour, seeds, spices, powder and other bulk materials between different processing stages. It is suitable for rice mills, flour mills, grain processing plants, food processing facilities, warehouses and agricultural processing units.
Key Benefits
- Efficient bulk material conveying
- Suitable for horizontal and inclined transfer
- Enclosed design helps reduce material spillage
- Continuous and controlled material flow
- Suitable for grains, powders and granular products
- Durable industrial construction
- Compact and space-efficient design
- Reduces manual material handling
- Easy operation and maintenance
- Customization available on request
Operation

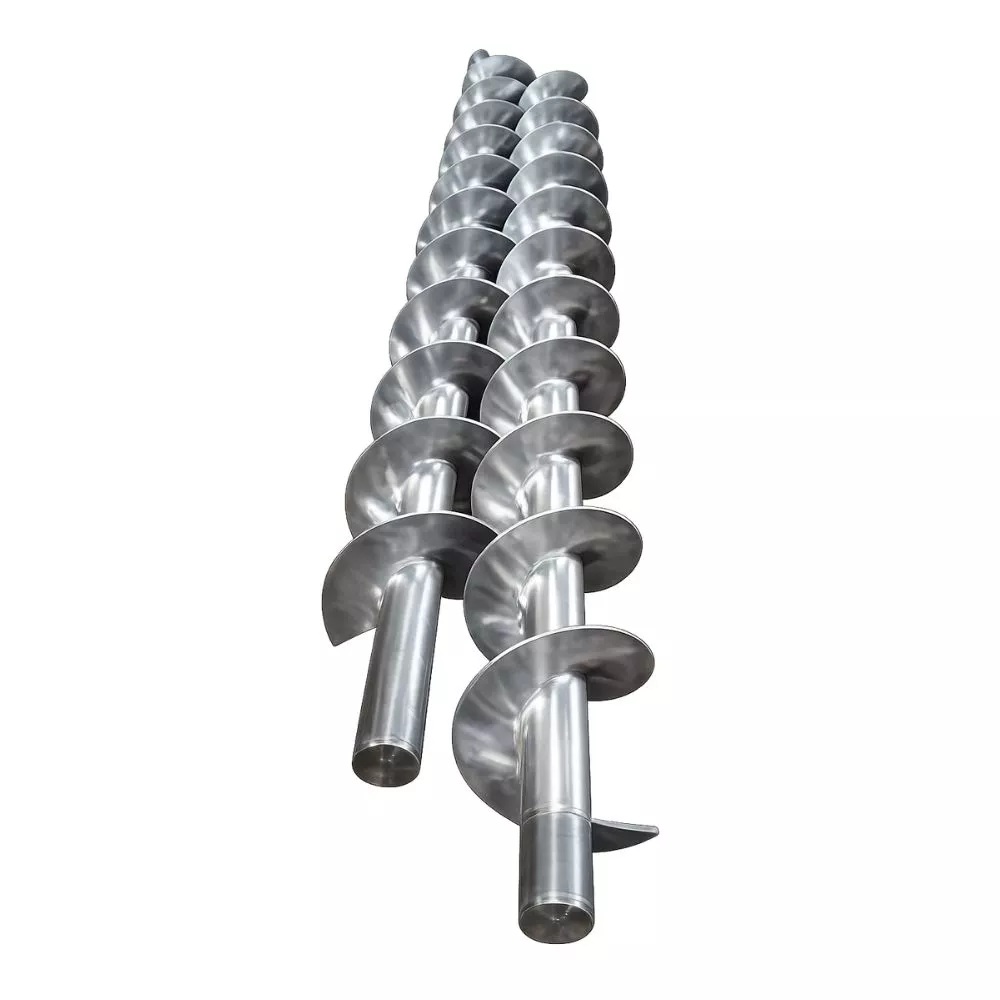

Material is fed into the inlet of the Screw Conveyor. A rotating helical screw, powered by an electric motor and gearbox, moves the material continuously along the enclosed trough or tube toward the discharge outlet. Conveying speed and capacity can be configured according to the material and application requirements.
|
Specification |
Details |
Machine Type |
Horizontal Screw Conveyor |
|---|---|
|
Application |
Conveying rice, grains, flour, seeds and granular materials |
|
Capacity |
2–10 TPH |
|
Conveyor Length |
2–12 m, customizable |
|
Screw Diameter |
150–400 mm |
|
Screw Material |
Stainless steel / carbon steel |
|
Contact Parts |
Food-grade stainless steel |
|
Drive Motor |
Approx. 1.5–7.5 kW |
|
Screw Speed |
Adjustable according to material and capacity |
|
Inlet / Outlet |
Customizable |
|
Control |
On/Off control or integrated with production line |
|
Power Supply |
380V / 50Hz / 3 Phase / Customized |
|
Suitable for |
Rice mills, grain plants and food-processing lines |
|
Construction |
Heavy-duty industrial frame with covered trough |
|
Packing |
Export wooden case / seaworthy packing |
|
Maintenance |
Easy-clean hygienic interior |
|
Country of Origin |
india |
FAQ
1. What is a Screw Conveyor used for?
It is used to continuously convey grains, powders and bulk materials from one processing point to another.
2. Which materials can be conveyed?
It can handle paddy, rice, wheat, pulses, flour, seeds, spices, powders and other suitable bulk materials.
3. Can the conveyor work at an angle?
Yes, Screw Conveyors can be designed for horizontal or inclined conveying depending on the application.
4. Is it suitable for rice mills?
Yes, it can be used to transfer paddy and rice between cleaning, milling, grading, polishing and packing sections.
5. Can the conveyor length and capacity be customized?
Yes, conveyor length, diameter, capacity, motor configuration and inlet/outlet arrangement can be customized.
6. Does Trade SBE provide customization?
Yes, Trade SBE can provide customized Screw Conveyor specifications according to the buyer's material handling and plant requirements.
